Description

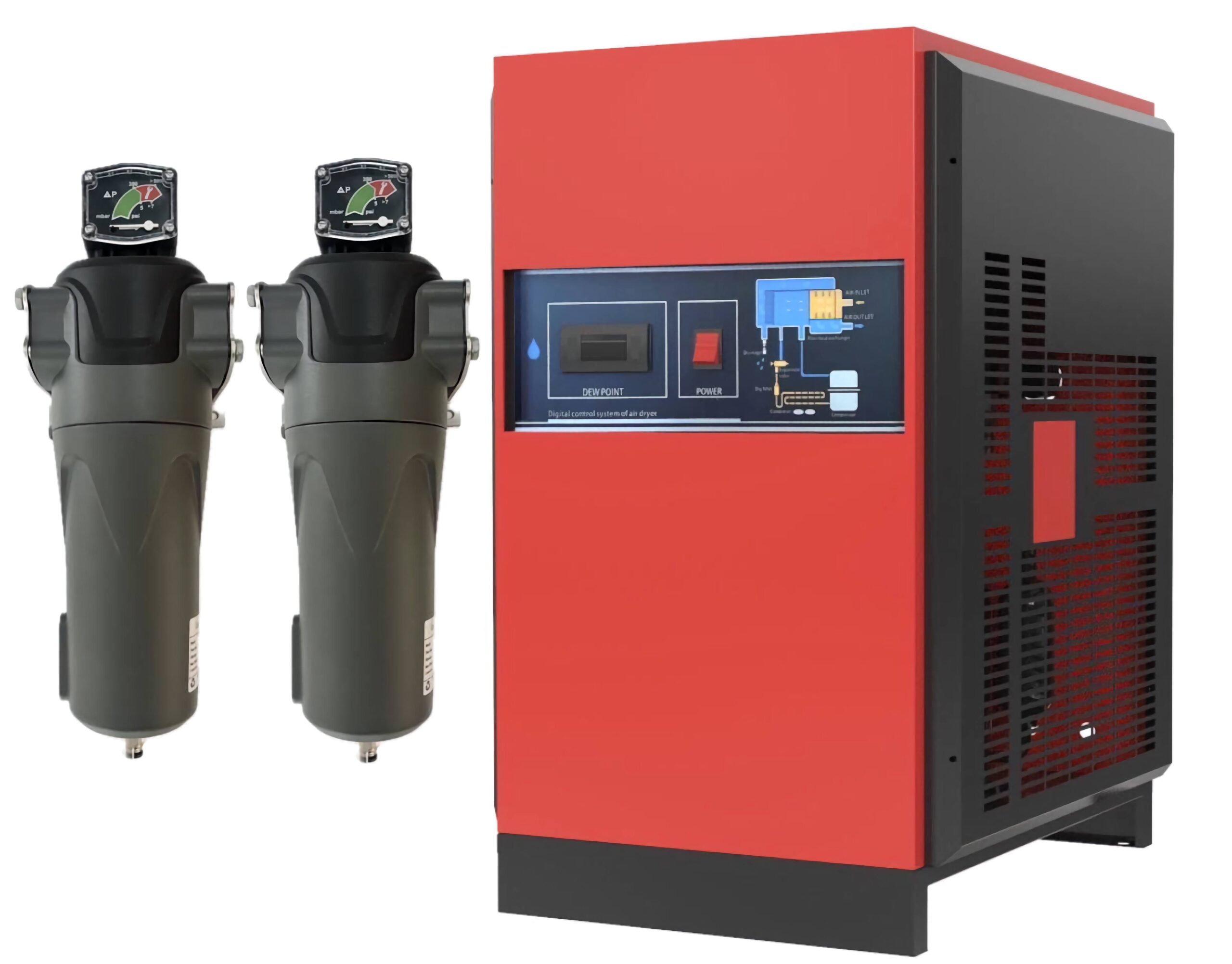

The Airwave ECO-DRY TR-60 is a floor-mounted refrigerated compressed air dryer rated 300 cfm, for removing moisture from your compressed air system.

Key features

The Eco-Dry TR Series

Refrigerated Compressed Air Dryers

The Goal – Simple and Effective solution for removing water

Compressed air contains naturally occurring moisture, which can negatively affect applications that require moisture-free air.

Dryers are a common solution for removing moisture content.

The most popular option is the refrigerated air dryer because of its ability to reach an acceptable dew point in general industrial plant air applications.

Simple, Plug and Play Design

Some manufactures in-corporate this item within the compressor cabinet, however this design creates an obvious problem, you would never install a freezer, next to an oven, floor mounted dryers also have the added advantage you can site the dryer anywhere you wish within the air system

The Brain – Dryer Control Board

The Airwave Eco-Dry digital controller allows the user to easily monitor the temperature parameters and visual alarms

The Heart and Body – Rugged and Tough

Encapsulated in an acoustic cabinet to reduce noise further,

(Equivalent to a domestic fridge) with all panels easily removed for servicing

Large capacity condenser and electrical controlled fan, reduces the compressors outlet air temperature in the warmest climate

Whilst the adjustable timed drain can be set to your preference

Enhancement – Water and Oil Contamination Removal

Due to there being moisture in the air being drawn in for compression, there will be moisture in your compressed air system, but also micro amounts of oil carryover from your compressor

Oil contamination removal is also essential for today’s production.

Floor mounted Refrigerated Dryer are also available with pre & oil removal filtration as standard to 0.01 micron

Enhancement – Oil Contamination Removal

Coalescing Filters deliver exceptional results in oil aerosol and particle retention, with particle removal down to 0.01 micron

Peace of Mind – No Quibble Guarantee, simple to service

Warranty, 2-year guarantee

Our trained engineers are always on hand for advice, spares, and service, but we appreciate some customers will be more hands on

So, we have launched on our YouTube channel editorials on how to install and service all our compressors and dryers

Specification

• Output: 300 cfm
• Dimensions: 590W x 770D x 990H
• Outlet: 2 BSPF
