Description

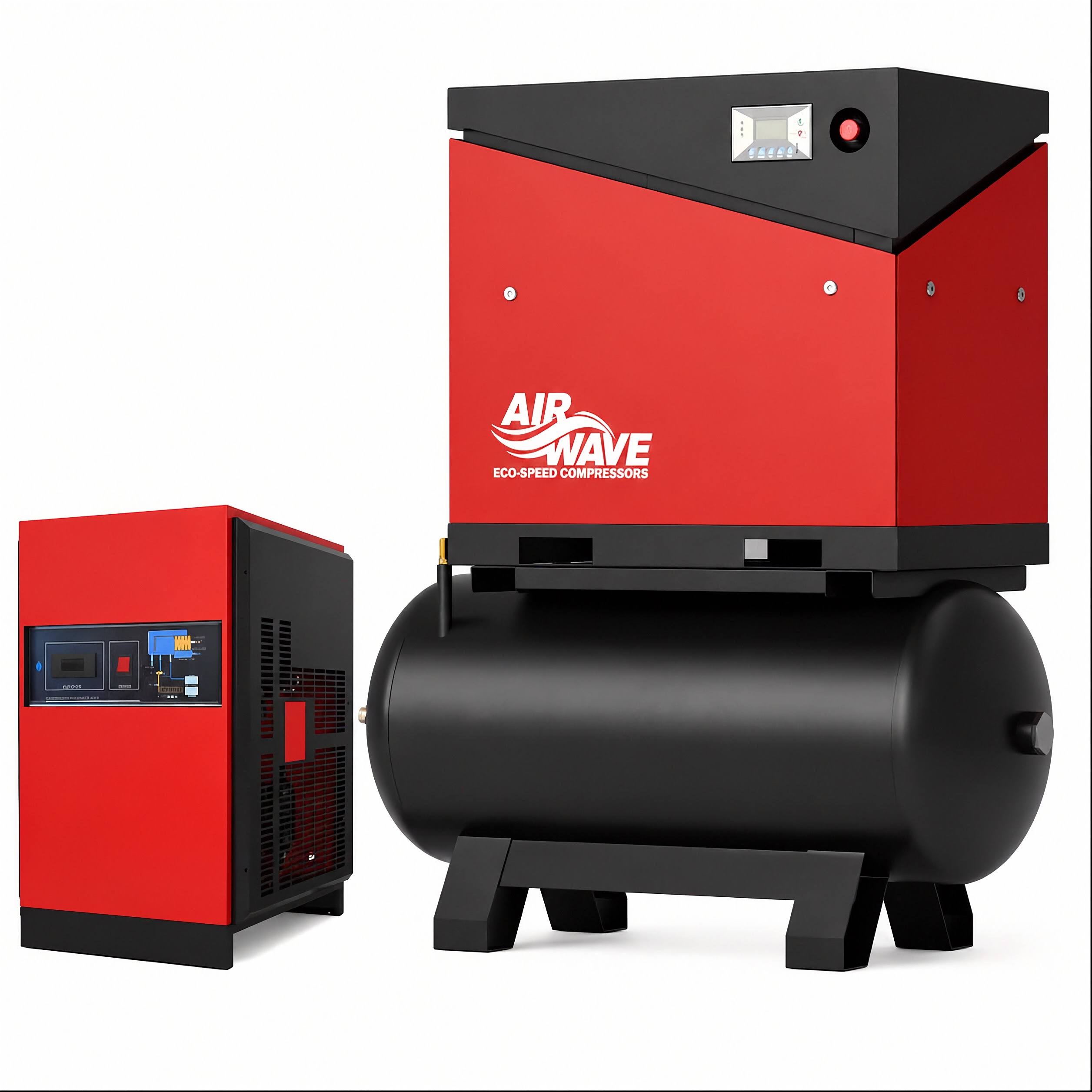

Airwave ECO-Speed, Fixed Speed Compressor, 7.5hp/5.5Kw-400V, 30 CFM, Max 10 Bar, 300L Tank Mounted + Floor Mounted Dryer.

Supplied with integrated refrigerated dryer (TR5).

Key features

• Oil-lubricated rotary screw air end
• 100% duty factor (continuous running)
• Direct-drive fixed-speed technology
• Voltage: 400/3/50 20 amp 3 Phase

Highlights

Robust Rotary Screw Pump – Oil Lubricated

The heart of the Airwave ECO-Speed is its high-performance rotary screw pump, designed to provide consistent and reliable air supply. The oil-lubricated air end guarantees long-lasting performance and minimal maintenance requirements, saving you time and money.

Reliable 100% Duty Factor

Count on the Airwave ECO-Speed to deliver continuous compressed air with its 100% duty factor. It's built to withstand the demands of your business day in and day out.

Easy Installation – Plug and Play

Say goodbye to complicated setups. The Airwave ECO-Speed is designed for straightforward installation, making it a true "plug and play" solution, reducing downtime and increasing productivity.

Direct Drive Fixed Speed Technology

With its direct drive fixed speed technology, this compressor operates efficiently and without unnecessary energy loss. You can rely on it to deliver consistent performance without fluctuations in air pressure.

Advanced Monitoring System

Stay ahead of maintenance with the built-in advanced monitoring system that provides real-time information and maintenance warnings, ensuring your compressor operates at peak performance.

Electric Thermostatically Controlled Cooling

Efficient cooling is vital to compressor longevity. The Airwave ECO-Speed is equipped with an electric thermostatically controlled cooling system, ensuring optimal operating temperatures at all times.

Built to Last

Crafted to withstand the toughest working conditions, this compressor boasts a maximum working pressure of 10 bar. Its solid seamless pipework and low component count are designed for durability and reliability, ensuring it stays operational for years to come.

Enhanced Air Quality with Optional Refrigerated Dryer

For businesses that require clean, dry air, the optional Refrigerated Dryer with oil removal filtration is available. Unlike some competitors who incorporate this within the compressor cabinet, Airwave Compressors have recognized the importance of separate placement, ensuring that you never install a freezer next to an oven. This thoughtful design ensures the quality of your compressed air.

Space-Efficient 300L Tank

Despite its robust performance, the Airwave ECO-Speed features a 300L tank with a compact "dumpy tank" design, minimizing its footprint in your workspace.

Specification

• Motor (hp): 7.5
• Motor (kW): 5.5kW
• Max working pressure: 10 Bar
• CFM @ 8 Bar: 30 cfm
• CFM @ 10 Bar: 27.5 cfm
• Tank size: 300L
• Noise level: 64 dB(A)
• Dimensions: 1400L x 670D x 1640H
• Outlet: 1/2 BSPF
