Description

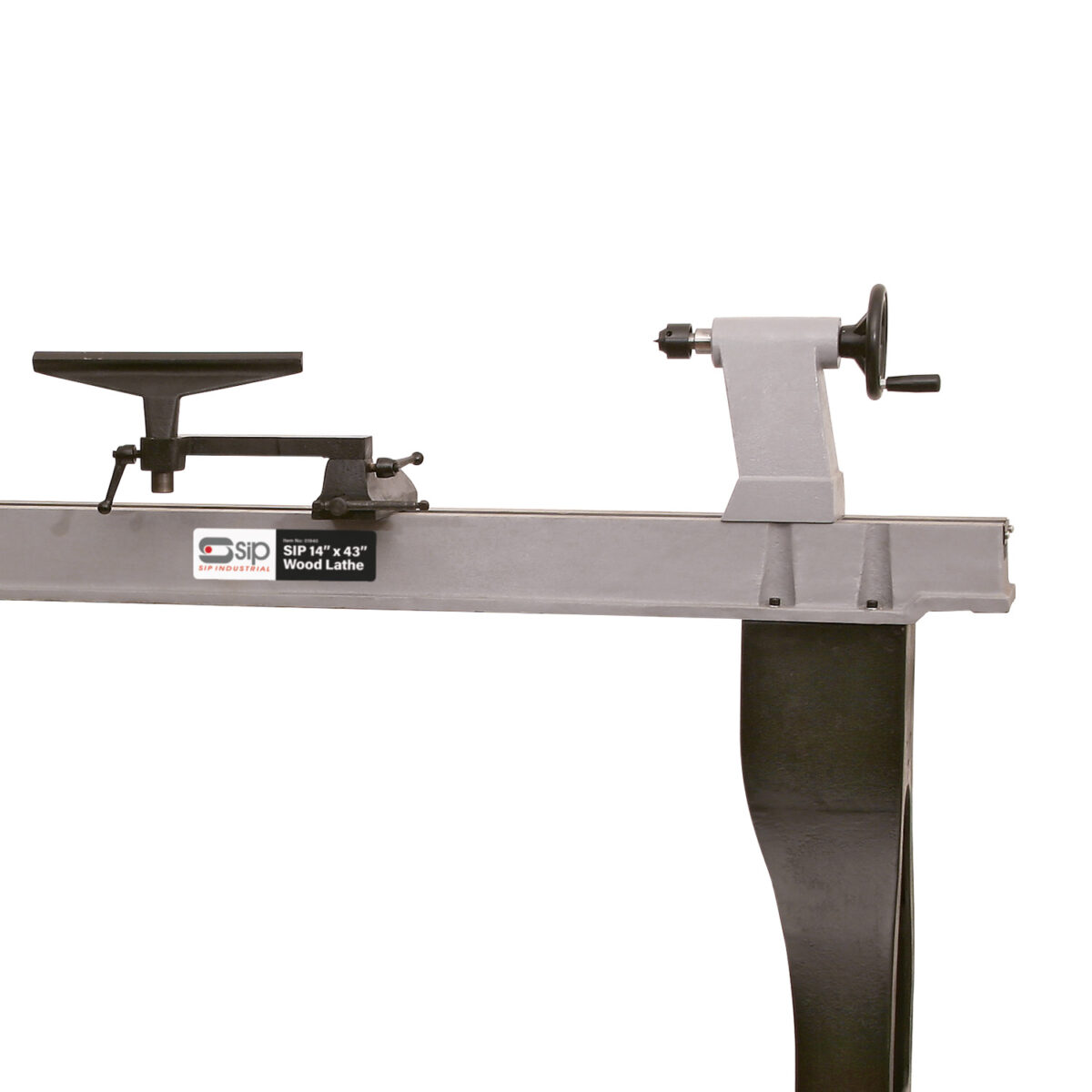

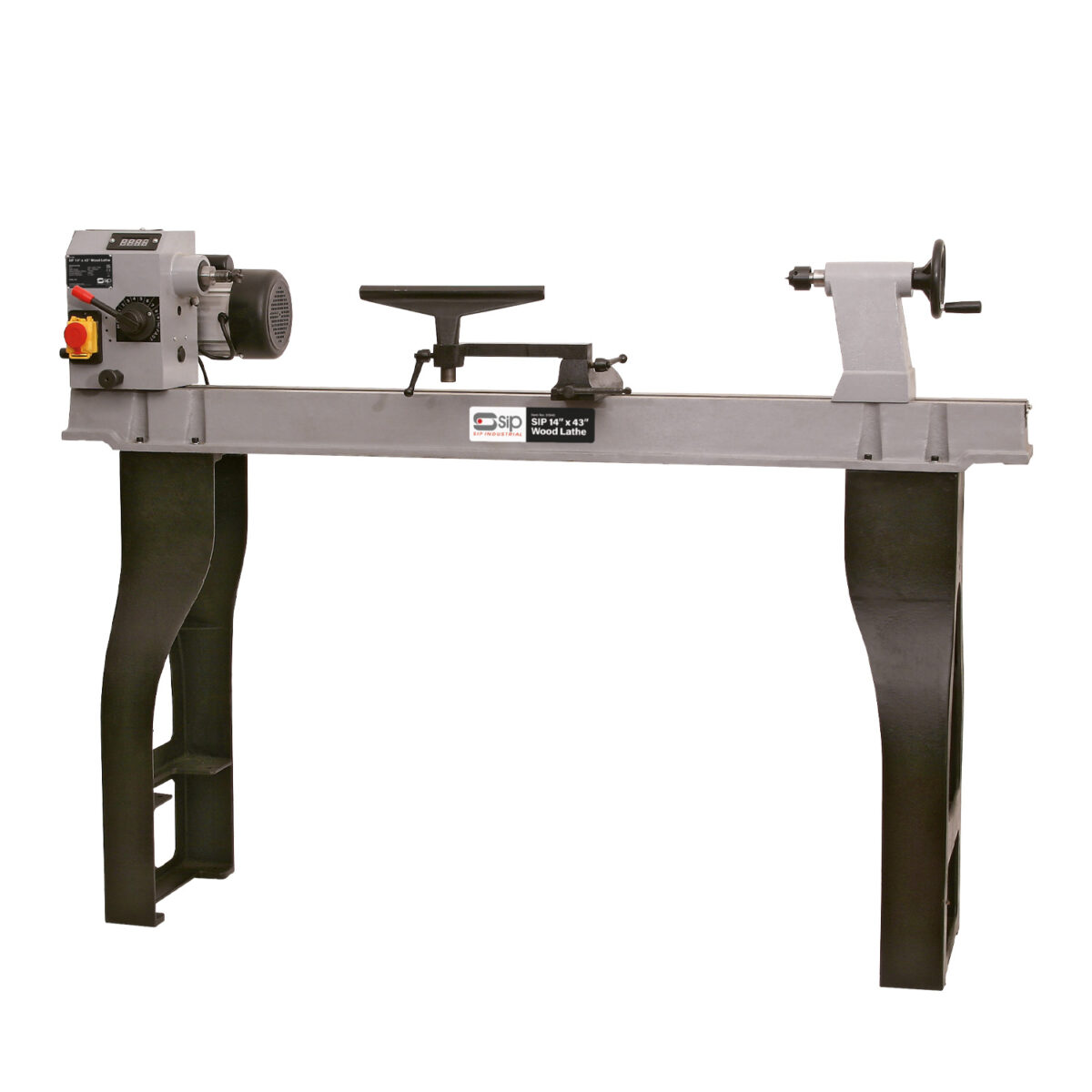

The SIP 14″ x 43″ Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.

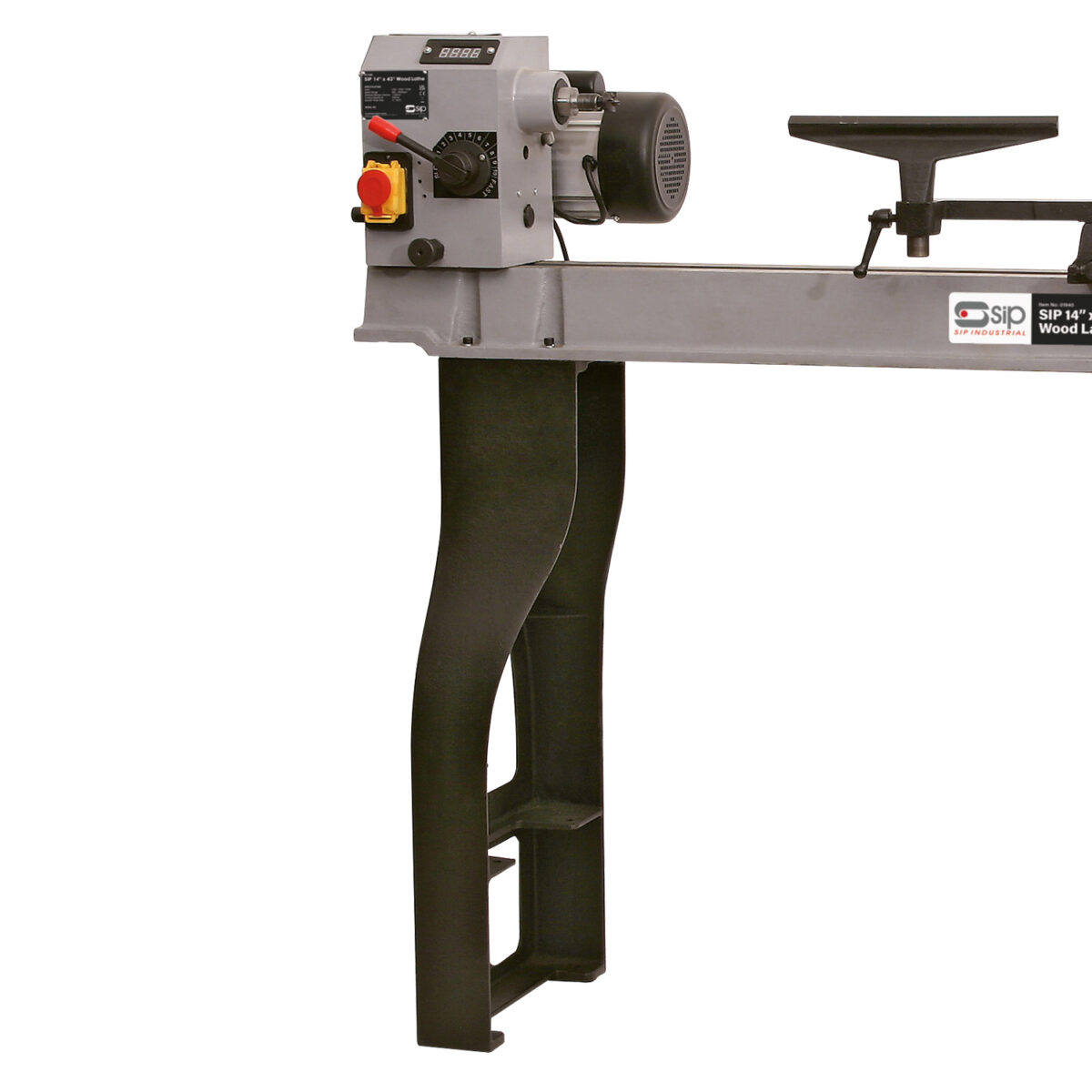

For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. Heavy-duty cast iron legs are fitted to the lathe to maximise stability during this process. The lathe bed, headstock and tailstock are also manufactured to a professional finish from heavy-duty cast iron.

The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control.

Supplied with tool rest, 6″ faceplate, drive and tailstock centres.

Applications & uses: Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.

• 3/4″ x 16TPI SPINDLE THREAD SIZE: Allows the use of various turning attachments.
• 350MM MAX. TURNING DIAMETER (1100MM BETWEEN CENTRES): Enables a variety of woodwork projects and jobs.
• 360° SWIVEL HEADSTOCK WITH 4 LOCK POSITIONS: Allows for outboard turning of larger wood materials.
• HEAVY-DUTY CAST IRON LEGS: Prevents flex and movement of the bed and enhances stability when outboard turning.
• HEAVY-DUTY CAST IRON LATHE BED: Ensures greater turning stability and accuracy.
• CAST IRON MT1 HEADSTOCK AND MT2 TAILSTOCK: For an assured hold to the workpiece when turning.

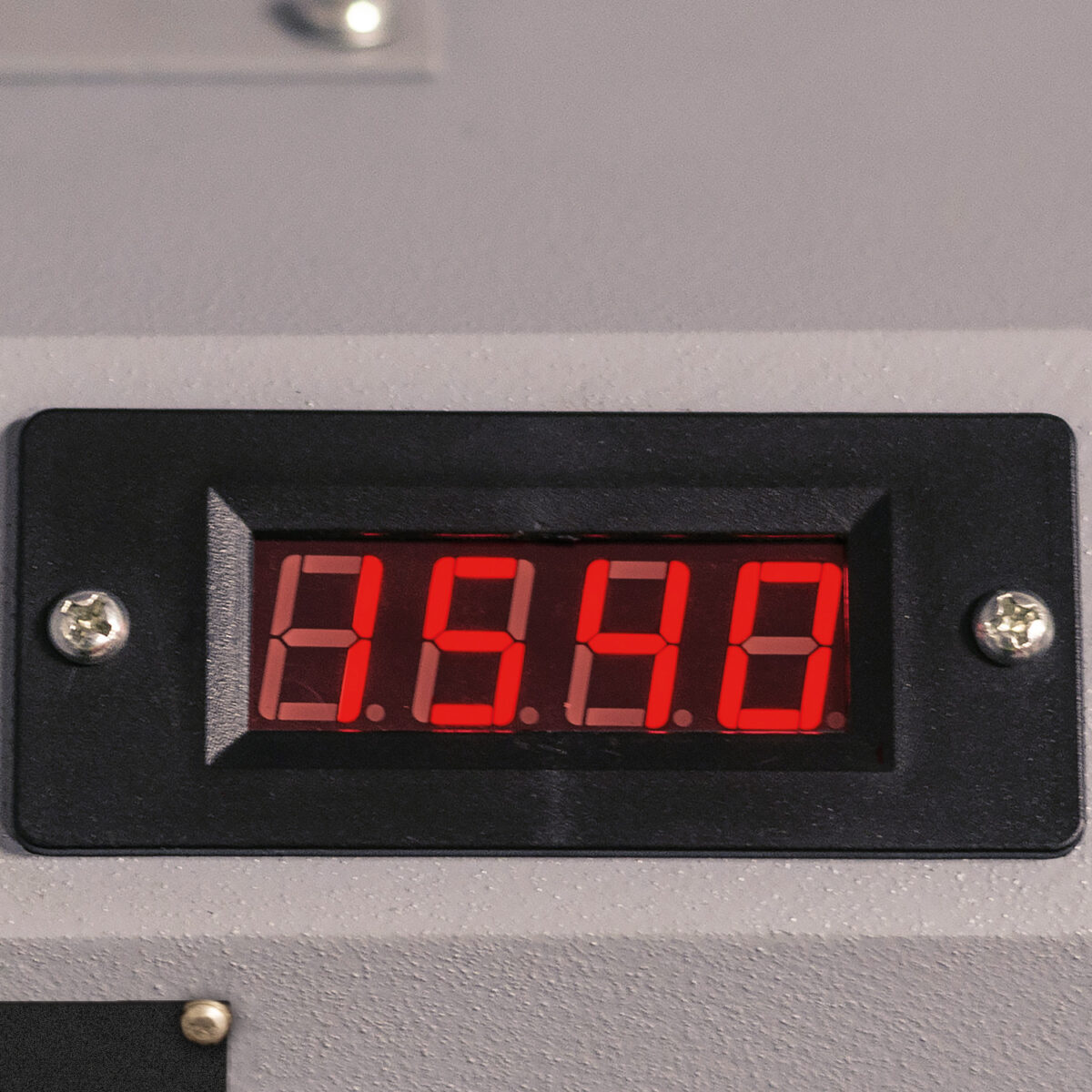

• DIGITAL SPEEDOMETER DISPLAY: Provides accurate readout of headstock spindle speed.
• FITTED WITH HOLLOW TAILSTOCK FOR LONG HOLE BORING: Offers added versatility for professional applications.
• SIP 2-YEAR STANDARD SILVER WARRANTY*

Technical Specification

• ITEM NO. 01940
• Input Supply: 230v (13A)
• Motor Power: 750w (1hp)
• Speed Range: 500rpm – 2000rpm
• Distance Between Centres: 1100mm (43″)
• Turning Capacity: 350mm (14″)
• Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
• Drive Spur Size: 1 Morse Taper
• Tailstock Rotating Centre Size: 2 Morse Taper
• Noise Level: 68dB(A)
