Description

The SIP 1500w Induction Heater Kit is ideal for heating and releasing rusted-on or hard-to-remove parts such as nuts, bolts and fastenings.

Designed for garages, automotive environments and workshops, the kit is supplied with 4x interchangeable induction heating coils which perform a variety of heat treatment tasks with precision and ease.

Easy to control and highly efficient, this plug-and-play solution heats an M8 nut to 300°C in 60 seconds using an all-electric process. This offers greater levels of safety compared to oxyacetylene and other methods which use a naked flame.

Applications & uses: Ideal for garage, workshop and automotive environments. Supplied Helix Coils are suitable for heating seized bolts, fastenings and M8 and M12 nuts. Flat Coil is suitable for sheet metal shrinkage or removing vehicle graphics and stickers. Flexi-Induction Coil is suitable for placing around tubes, metal fixings and hard-to-reach objects.

What’s in the box?: 1x SIP 1500w Induction Heater Kit, 1x 3mtr power cable, blow-moulded storage case, 4pc induction heating coil kit including Helix Coil 19mm (220mm L), Helix Coil 26mm (220mm L), Flat Coil (220mm L x 65mm W), Flexi-Induction Lead (800mm L).

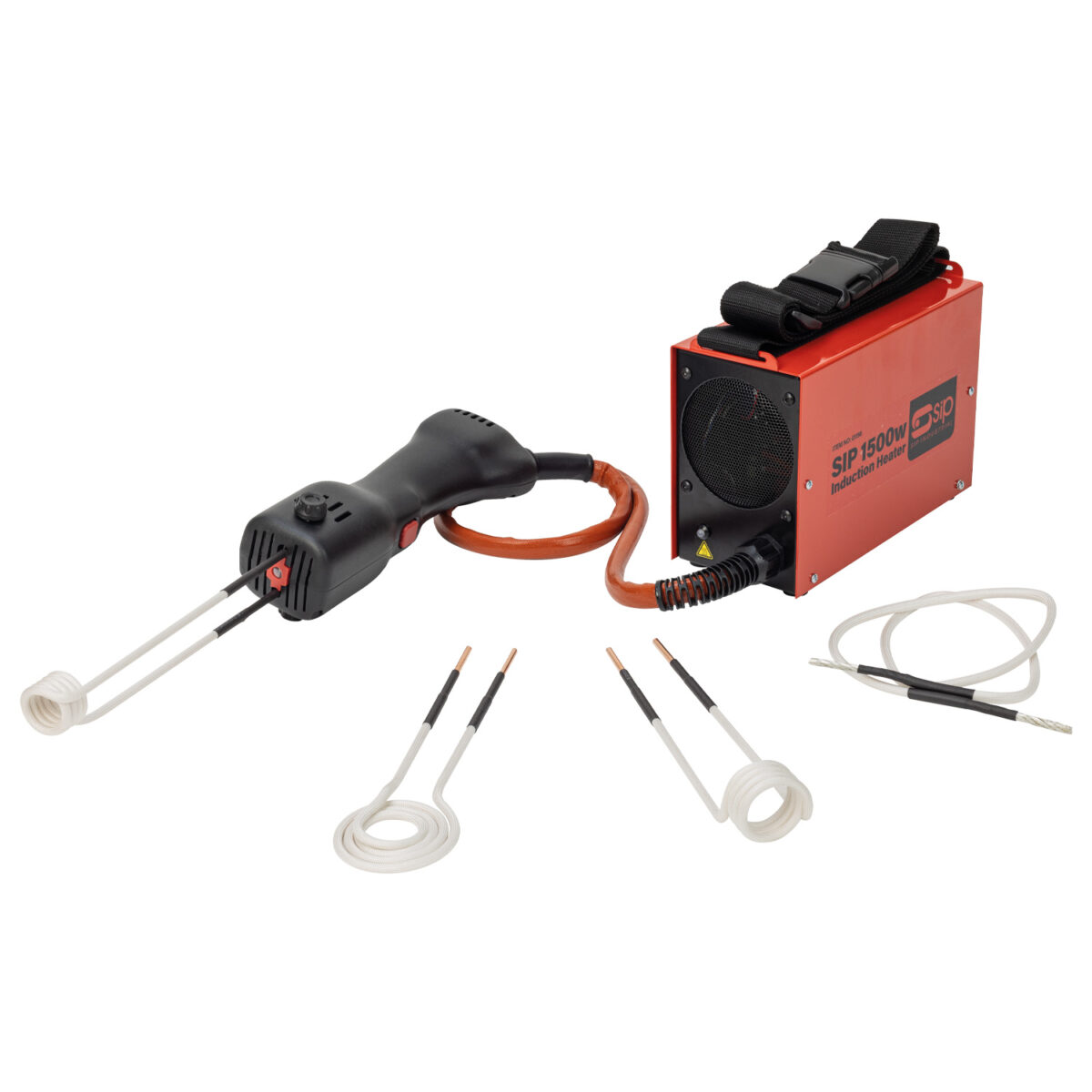

• POWERFUL & COMPACT (1500W): Features fan-cooled handheld torch with socket adjusters for interchangeable heating tools. Fan-cooled torch maximises performance and protects the user’s hands from the heat produced. Compact unit delivers fast, safe and efficient heat quickly via 1.5kW inverter power module.

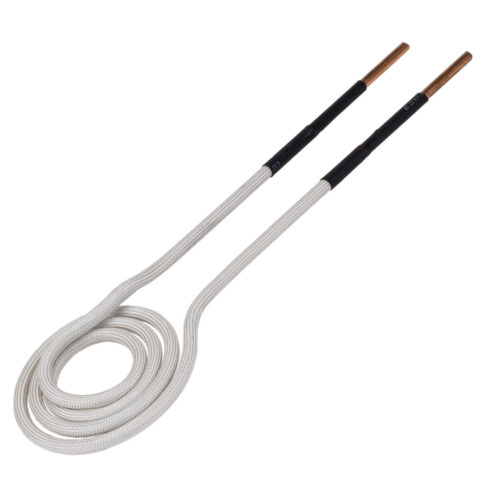

• 4-PIECE INDUCTION KIT SUPPLIED: HELIX COIL (2x) – 1x ⌀ 19mm (suitable for M8 nuts), 1x ⌀ 26mm (suitable for M12 nuts). Both 220mm length. Suitable for placing over or around nuts, bolts and fastenings. FLAT COIL (1x) – 65mm width and 220mm length. Ideal for shrinkage when processing sheet metal or removing vehicle stickers and graphics. FLEXI-INDUCTION COIL (1x) – 800mm length end-to-end. Used for placing tubes, metal fixings and hard-to-reach objects.
• EASY-TO-USE DESIGN: Simple to power from a 230v (13A) supply and fitted with an intuitive ‘one-touch’ induction torch trigger.
• LIGHTWEIGHT & PORTABLE: Lightweight fan-cooled unit includes a shoulder strap for movability when in use.

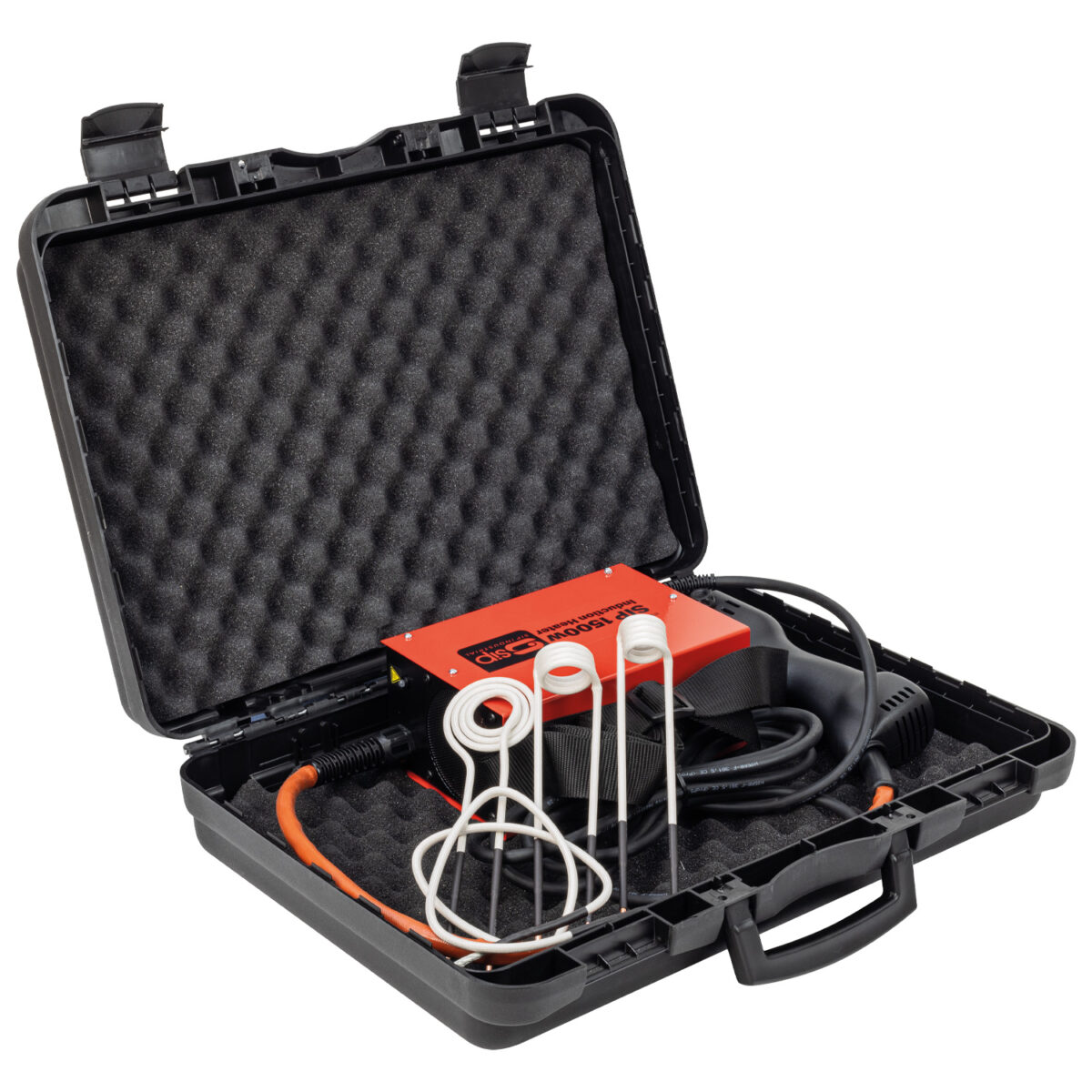

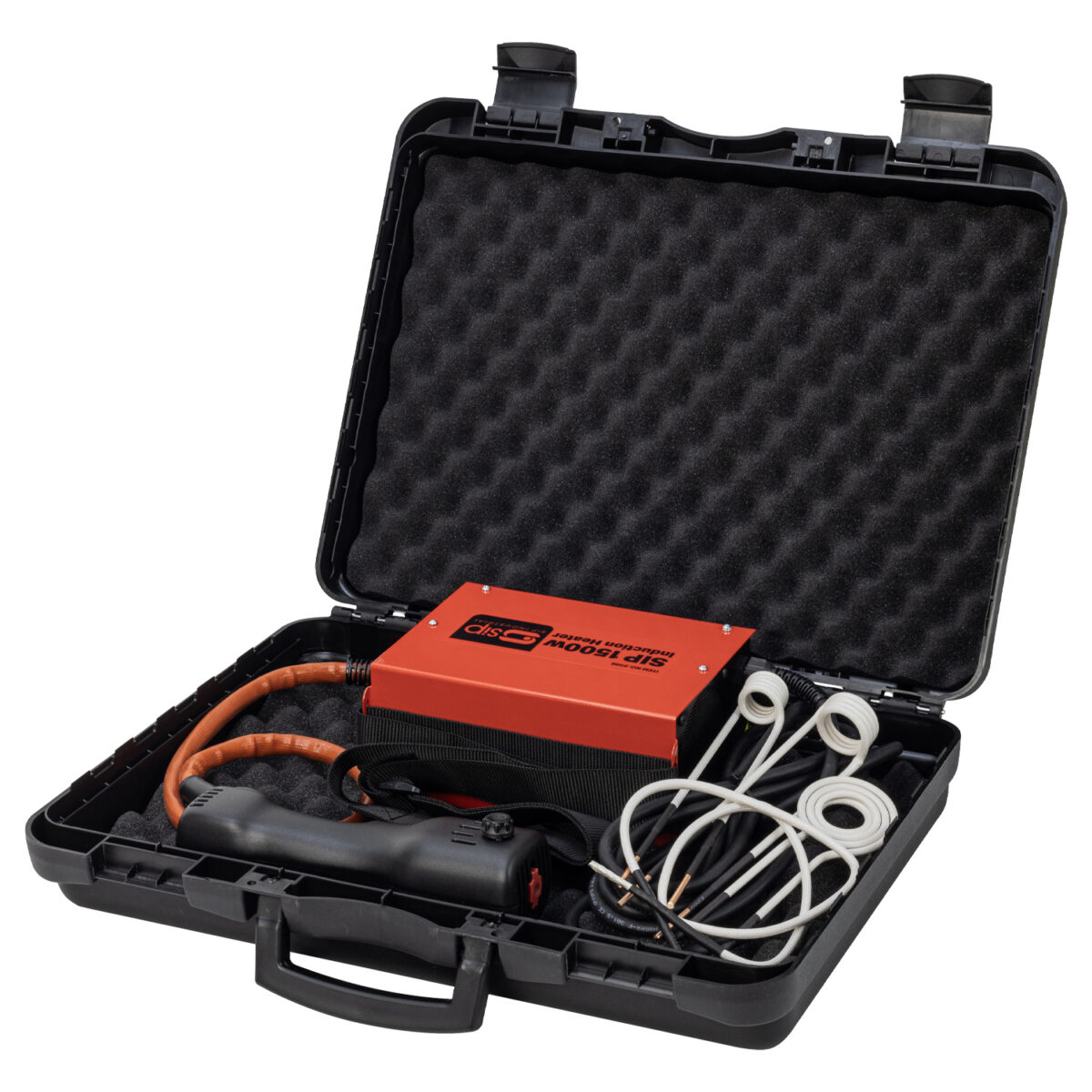

• CARRY CASE: Supplied with durable carry case allowing storage of the unit and 4-piece induction kit.
• OPTIONS & ACCESSORIES, SOLD SEPARATELY: SIP 1000mm Induction Flexi Coil (HY02-00930), SIP 800mm Induction Flexi Coil (HY02-00931), SIP Induction Coil Pad (HY02-00932), SIP Induction Flat Coil (HY02-00933), SIP Induction Hooked Coil (HY02-00934), SIP 15mm Induction Coil Straight (HY02-00935), SIP19mm Induction Coil Straight (HY02-00936), SIP 20mm Induction Coil Straight (HY02-00937), SIP 23mm Induction Coil Straight (HY02-00938), SIP 26mm Induction Coil Straight (HY02-00939), SIP 32mm Induction Coil Straight (HY02-00940), SIP 38mm Induction Coil Straight (HY02-00941), SIP 45mm Induction Coil Straight (HY02-00042)
• SIP 2-YEAR STANDARD SILVER WARRANTY*

Technical Specification

• ITEM NO. 01156
• Input Supply: 230v (13A)
• Induction Power: 1.5kW
• Power Control: Fixed
• Induction Cable Length: 850mm
• Power Cable Length: 3mtr
• Ventilation: Fan-Cooled Torch & Inverter Unit
• Inverter Frequency Range: 25kHz – 60kHz
