Description

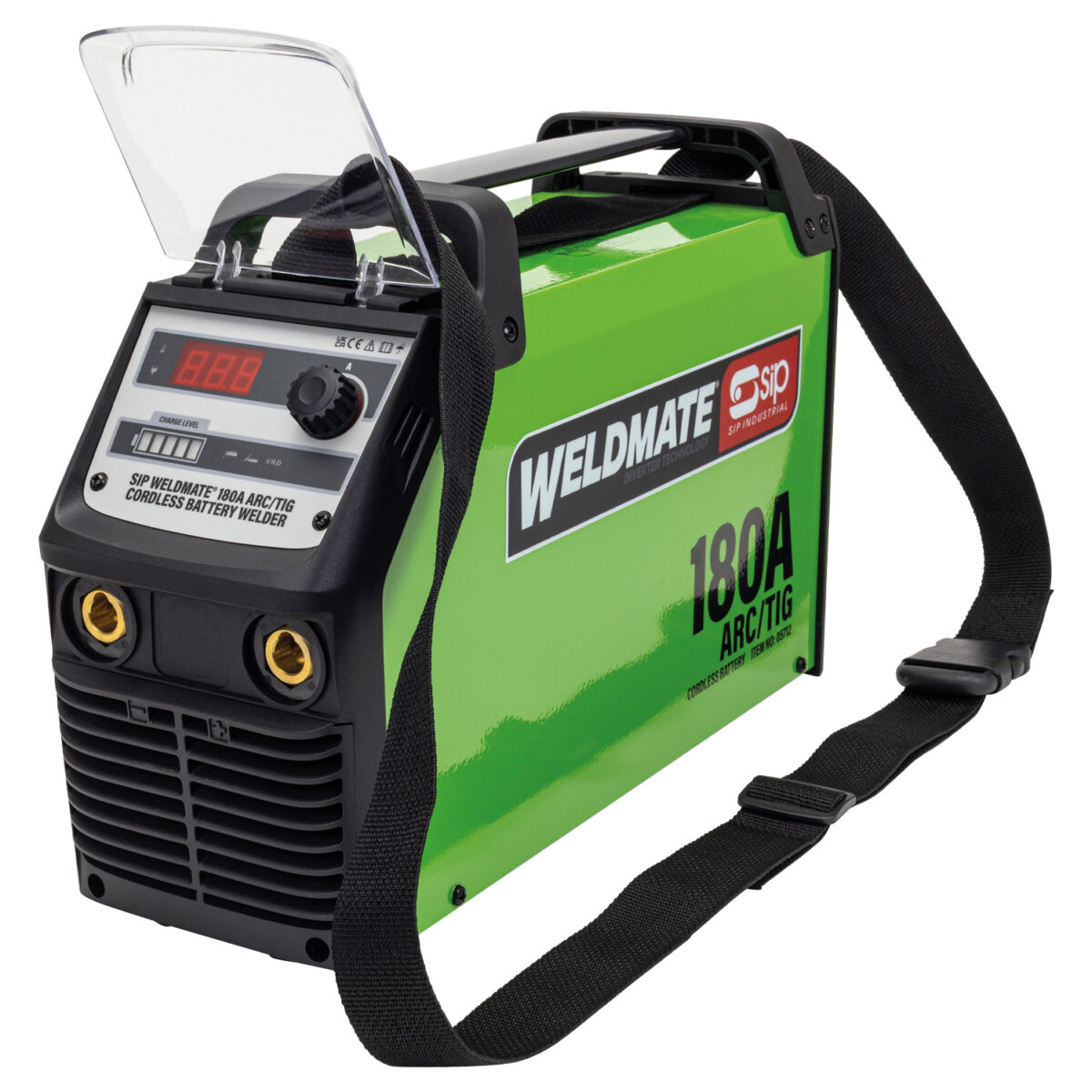

The SIP WELDMATE® 180A ARC/TIG Cordless Battery Welder provides portable and accurate welding wherever and whenever you need it, bringing both portability and performance through a lightweight and compact battery-powered design. Suitable for MMA (ARC) and TIG welding applications.

Perfect for welding in environments including on-site, construction and agricultural use where mains supplies are not available.

Supplied with 3mtr 25mm² electrode lead, Earth lead, and over-shoulder carry strap.

Applications & uses: Ideal for environments including on-site, construction and agriculture where mains supplies are not available.

• 3 WELDING MODES: MMA (ARC), MMA (ARC) with VRD, and Lift TIG welding modes.
• DIGITAL DISPLAY: Easy-to-read digital display with battery power monitor and indicator.
• INVERTER TECHNOLOGY: Built with the latest inverter technology and Lithium-Ion battery pack.
• QUALITY WELDING: High-quality ARC and TIG welds from a single charge.

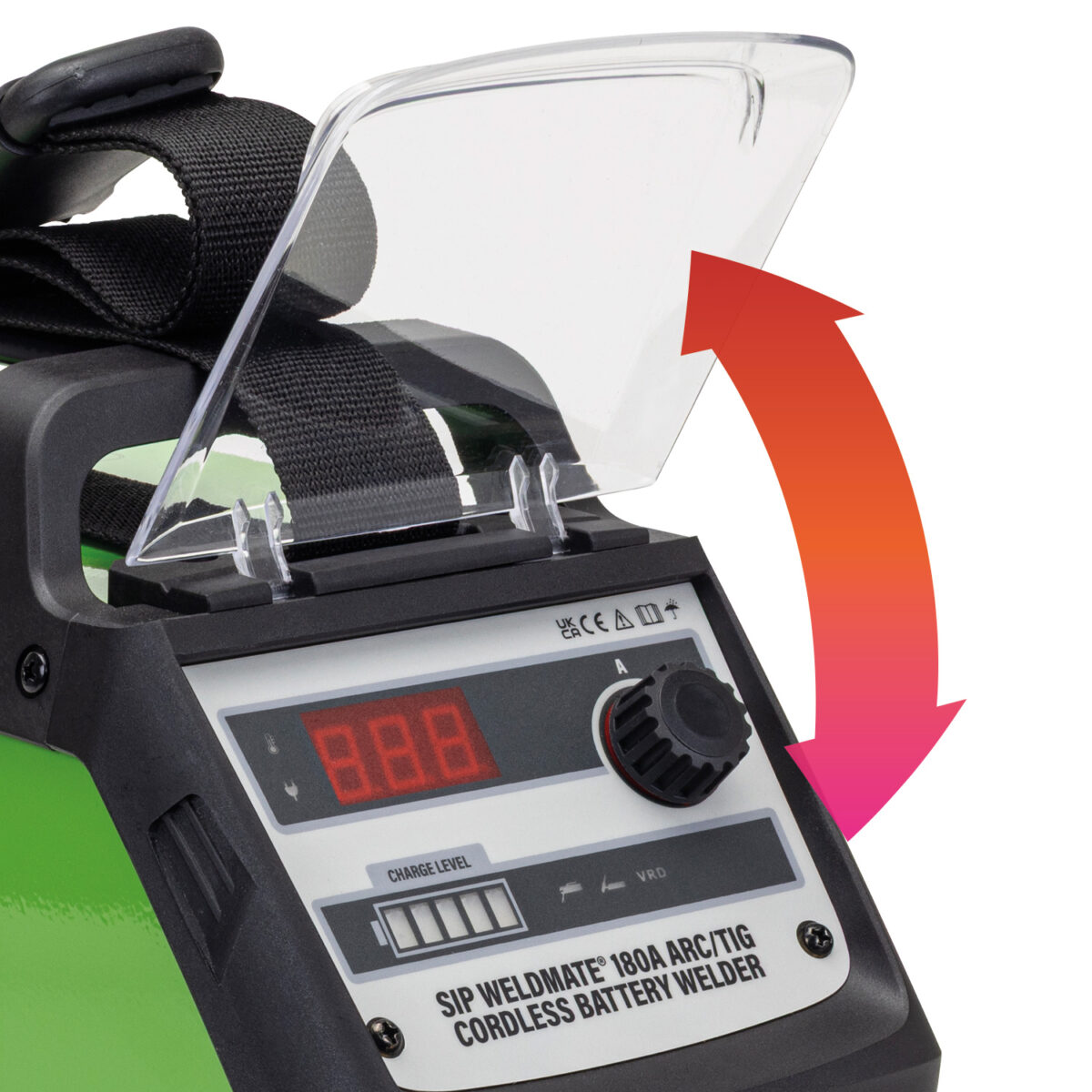

• HIGH DURABILITY: Manufactured with heavy-duty casing and visor.
• COMPACT DESIGN: Lightweight for simple portability in demanding environments.
• AUTONOMOUS WELDING: Welds 20x 2.5mm, 14x 3.2mm and 6x 4mm rods.
• FAST CHARGING: Fully recharged in as a little as 1.5hrs.
• SIP 2-YEAR STANDARD SILVER WARRANTY*

Technical Specification

• ITEM NO. 05712
• Battery Type: Lithium-Ion* (*Ensure a discharge/recharge cycle is performed every 3 months. Always keep welder battery above 50% charge when not in use)
• Battery Capacity: 740Wh
• Charger Voltage: 230v AC +/- 10%
• Charging Time: 1.5hrs
• Battery Output Voltage: 74v
• Charging Current: 8A
• Welding Current Range: 10A – 180A (MMA) / 10A – 150A (TIG)
• Duty Cycle: 180A @ 10% / 130A @ 20% / 60A @ 100%
• Welding Rod Size (Ø Electrode / Length): 2.5mm x 300mm / 3.2mm x 350mm / 4mm x 450mm
• Welding Capability (on full charge): 20 rods @ 85A / 14 rods @ 115A / 6 rods @ 160A
