Description

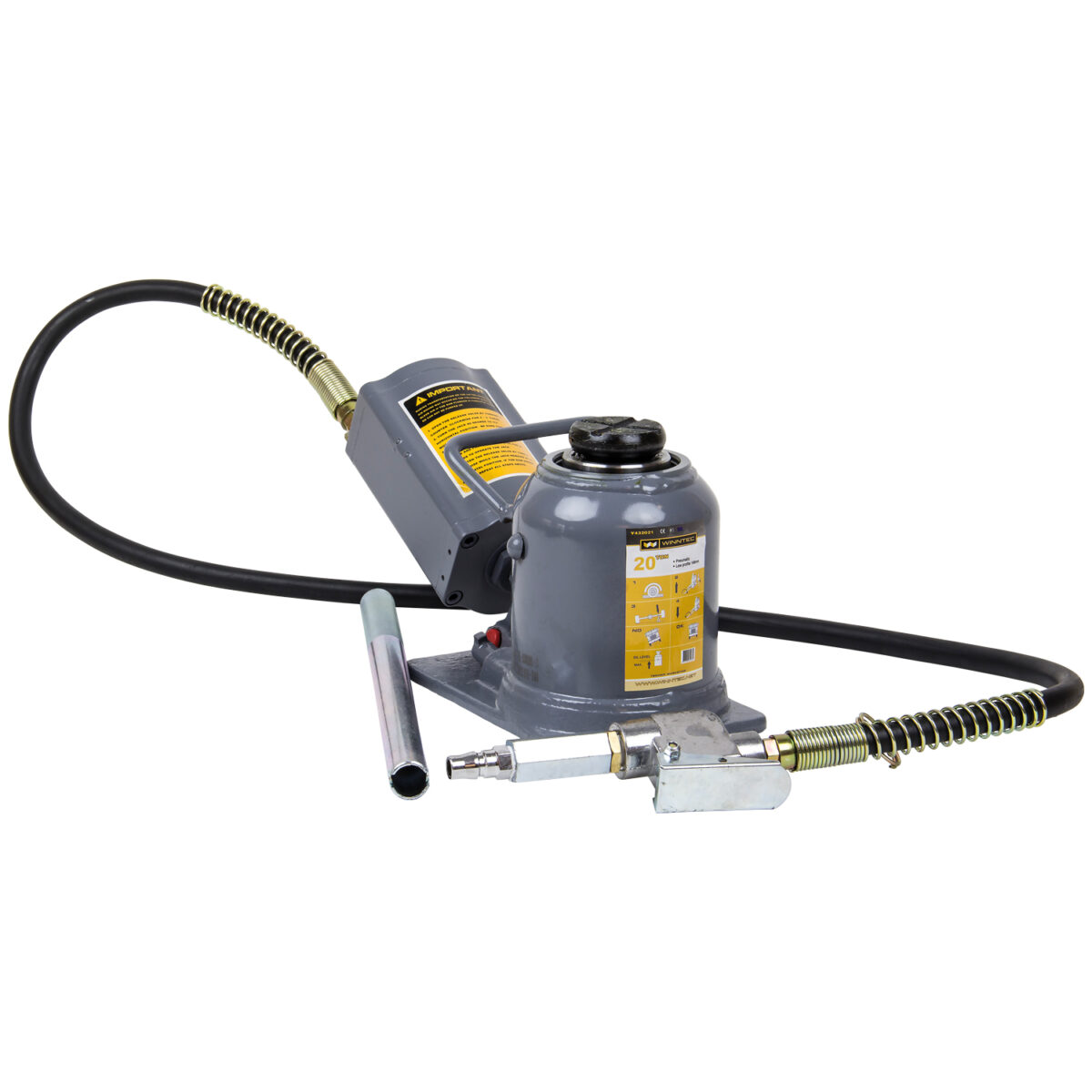

The WINNTEC® from SIP 20 TON Low-Profile Air Bottle Jack utilises a combination of heavy-duty components and air-assisted lifting to provide powerful performance in automotive and commercial applications, offering safe support of all types of vehicles, including sports and performance cars with a lower profile.

Designed for horizontal and vertical operation, this bottle jack is extremely versatile.

• 20 TON maximum weight capacity
• 148mm to 260mm lifting height range
• 45mm screw extension for improved lifting versatility
• Low-profile design perfect for performance vehicles
• Heavy-duty welded wide base helps spread weight evenly
• Designed for both horizontal and vertical operation
• Heavy-duty aluminium air motor for rugged performance
• Heat-treated cylinder wall for added durability

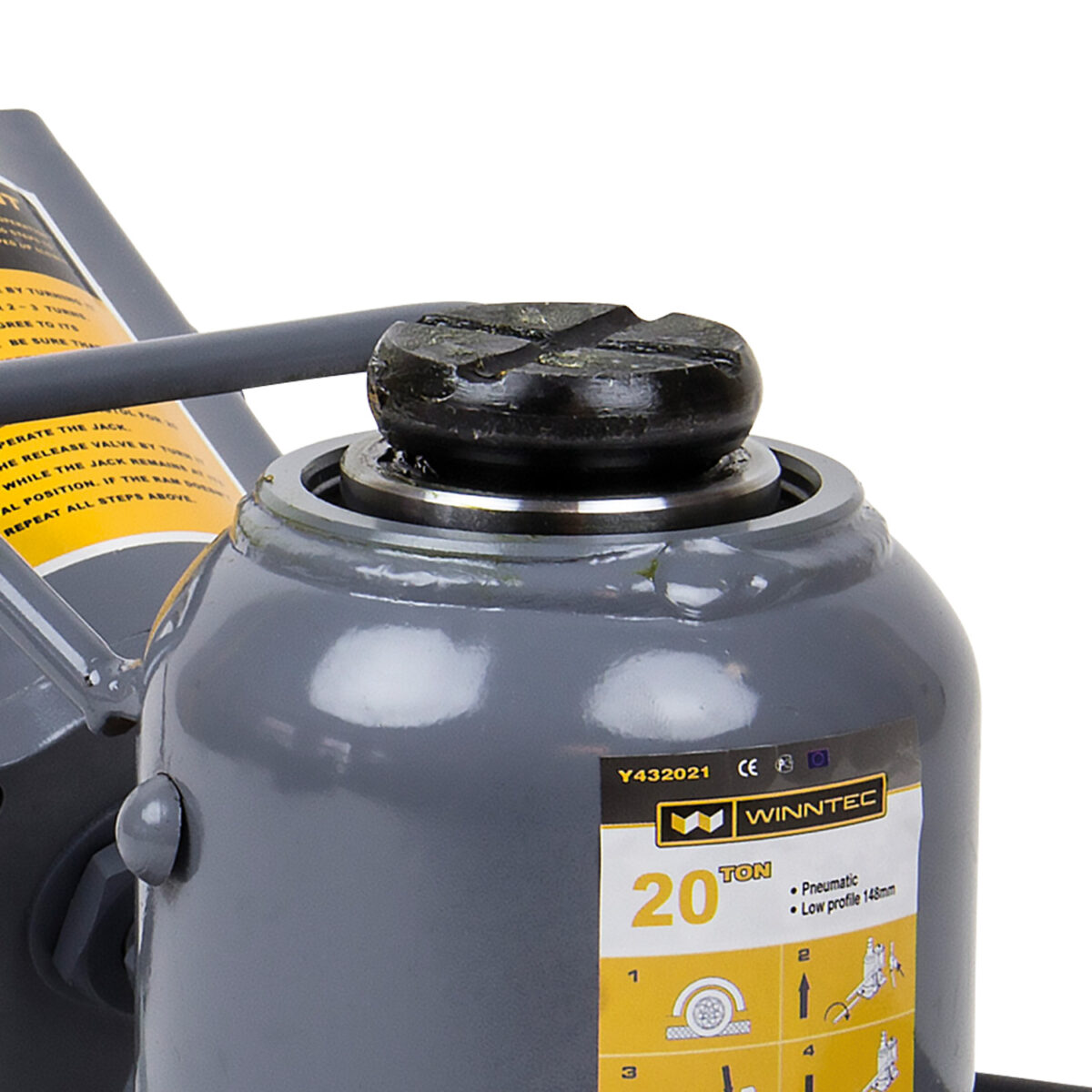

• Durable polished ram and chromed pump pistons
• Integrated overload protection for safety
• Air filters help prevent contamination
• Quality European design for performance
• WINNTEC® from SIP 3-Year Warranty

Technical Specification

• ITEM NO. 09829
• Weight Capacity: 20 TON
• Min. Lifting Height: 148mm
• Max. Lifting Height: 260mm
• Screw Extension: 45mm
• Air Consumption: 5CFM (140ltr/min)
