Description

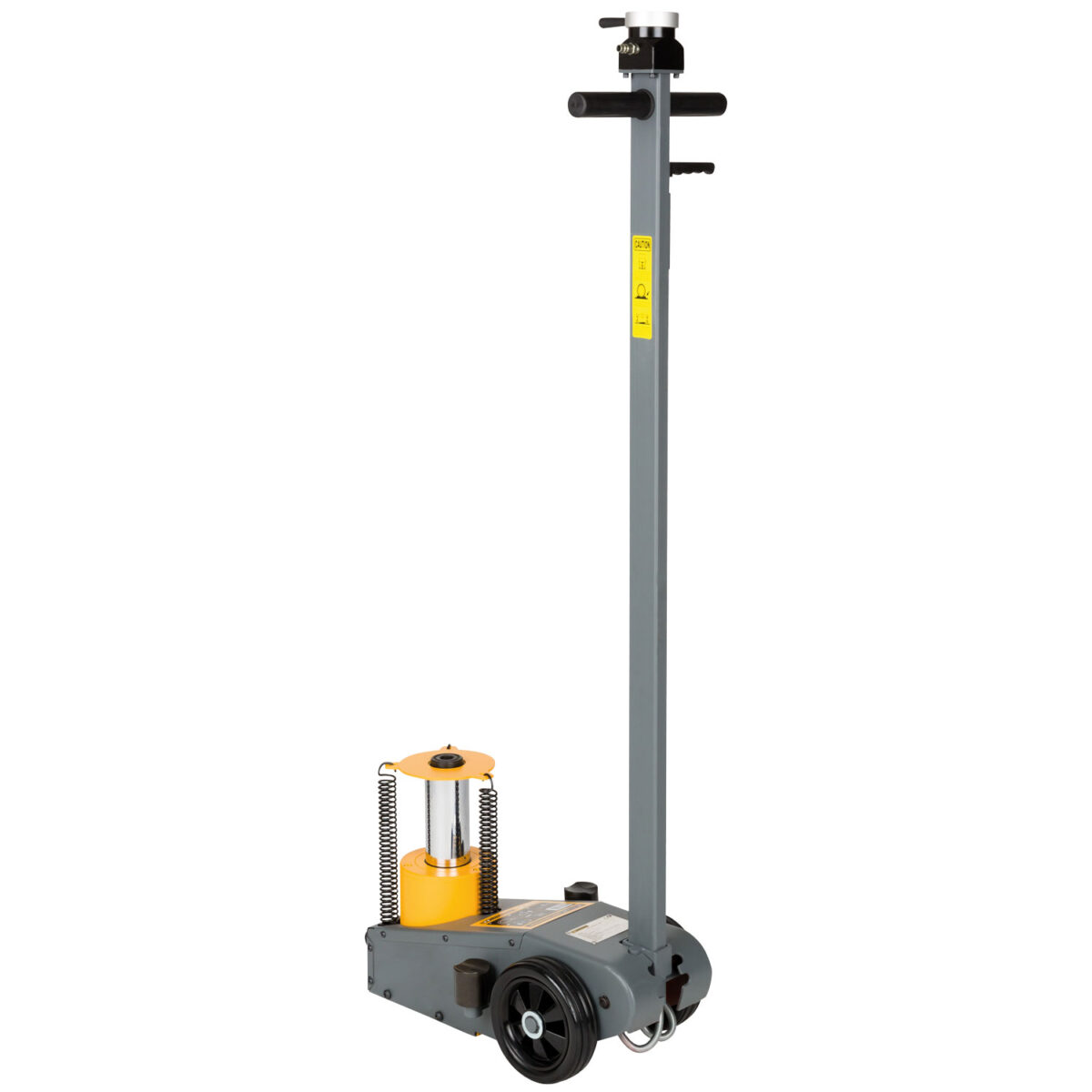

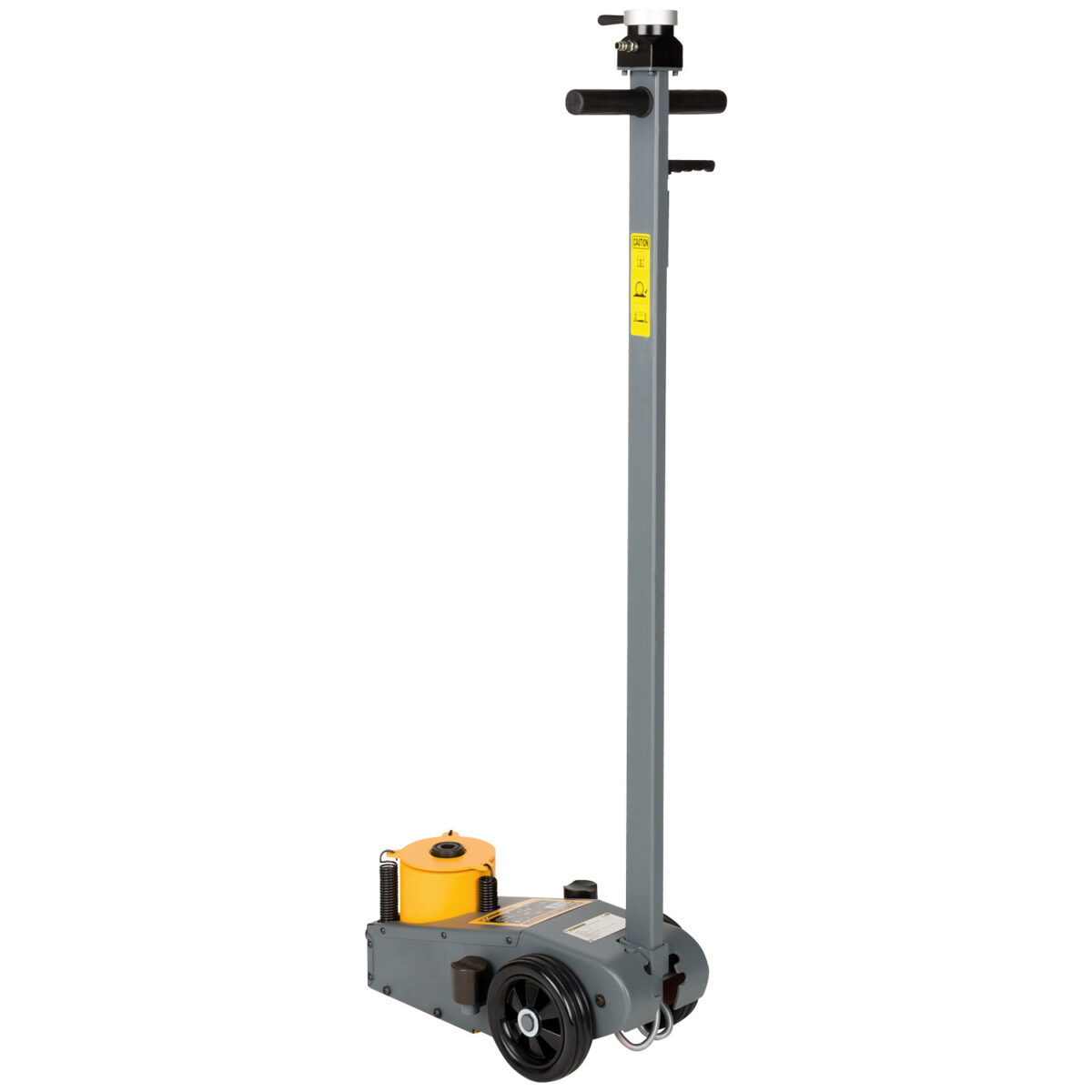

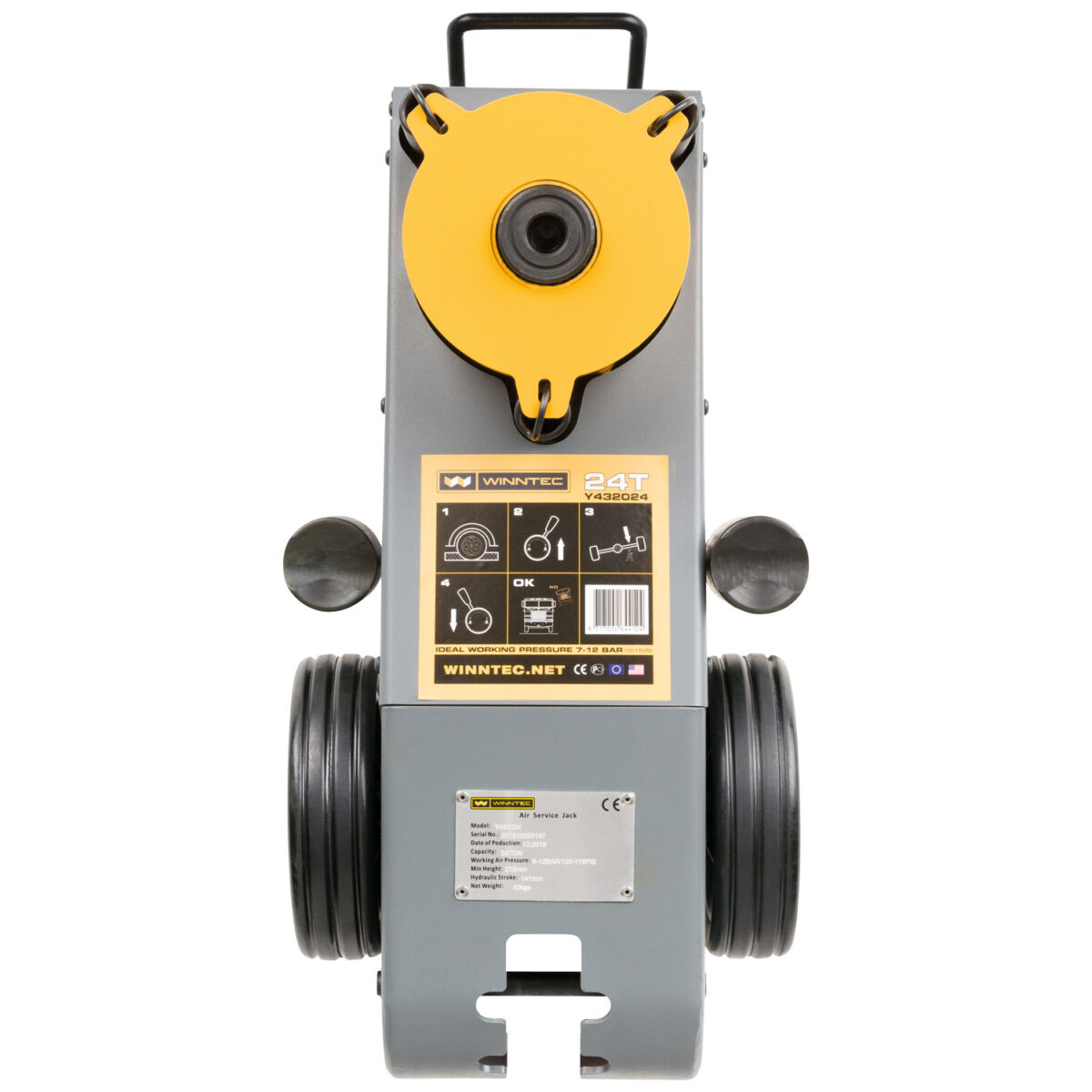

The WINNTEC® from SIP 24 TON Air Service Jack offers powerful lifting and extremely heavy-duty performance across a range of larger and heavier vehicles which require a versatile lifting range, accommodating easy hydraulically-assisted lifting up to 441mm.

Operators are protected to the highest standard in all lifting applications through a number of safety features, including dead mans controls, and durable components.

• 24 TON maximum weight capacity
• 141mm to 441mm lifting height range
• One-stage hydraulic lifting system for increased ease-of-use
• Easily ascension and descension with air for user protection
• Supplied with 3 versatile extensions,: 20mm, 50mm, and 100mm
• Wheel-mounted design with long handle for simple positioning
• Built-in dead mans controls for reliable user safety

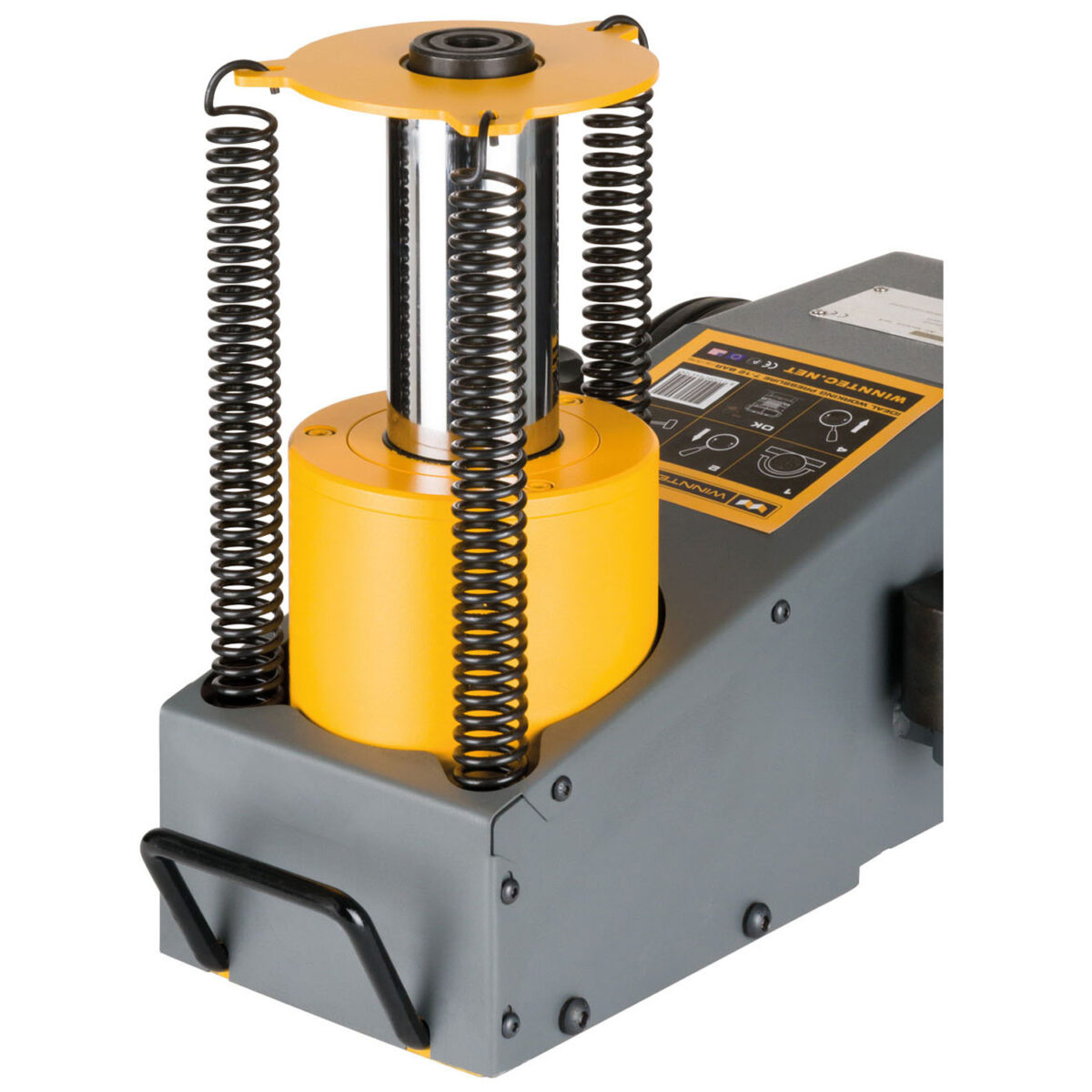

• Heavy-duty hard chromed piston and main ram
• Quality European design for performance
• WINNTEC® from SIP 3-Year Warranty

Technical Specification

• ITEM NO. 09890
• Weight Capacity: 24 TON
• Min. Lifting Height: 141mm
• Max. Lifting Height: 441mm
• Screw Extension: 85mm
• Supplied Extensions: 20mm / 50mm / 100mm
• Air Consumption: 10.6CFM (300ltr/min)
• No. of Stages: 1 stage
• Handle Length: 1240mm
• Jack Length: 525mm
• Jack Width: 265mm
• Base Height: 215mm
