Description

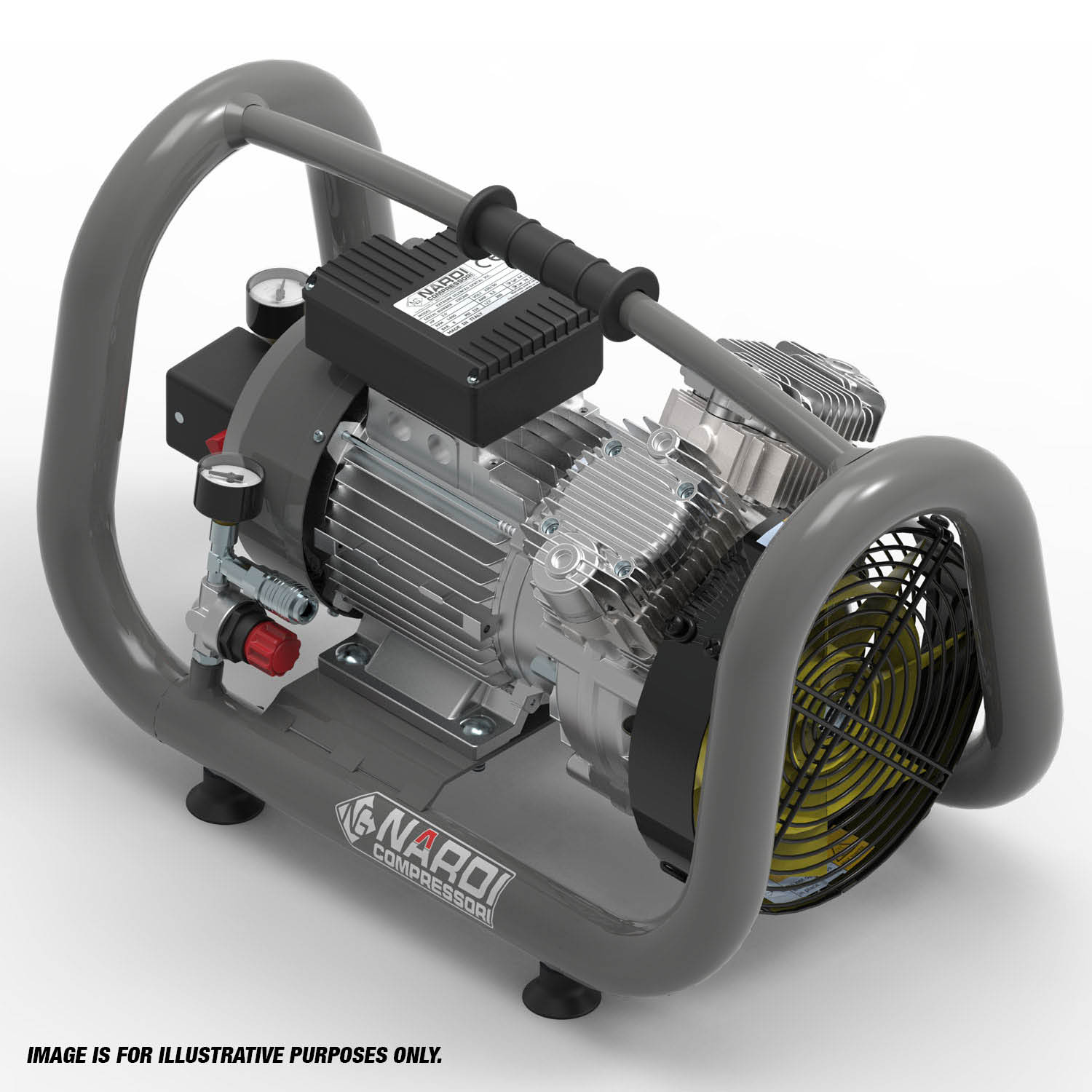

The NARDI EXTREME 3T 1.50HP 15BAR 5ltr Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low and medium pressure and flow, remote locations, and fibre blowing.

• Powerful 4-pole brushless induction motor
• Lightweight, compact, and highly portable framed design
• V-Twin cylinder; direct drive crankshaft via motor shaft
• High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
• Concentric big end bearings for reduced vibration and increased pump life
• Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
• Fan-shaped stainless steel valves provide long life and durability
• Forced air cooling for an extended runtime and performance
• Pressure cut-off switch and adjustable air regulator
• SIP 3-Year Standard Silver Warranty
• Manufactured in Italy

Technical Specification

• ITEM NO. EXT515415
• Input Supply: 230v (13A)
• Motor Power: 1.10kW (1.50hp) 4-POLE 1400rpm
• Receiver Size: 5ltr
• Piston Displacement: 4.00CFM (115ltr/min)
• Free Air Delivery (FAD): 2.80CFM (80ltr/min)
• Max. Air Pressure: 217psi (15bar)
• No. of Cylinders: 2 cylinders
• Noise Level: 72dB(A)
