Description

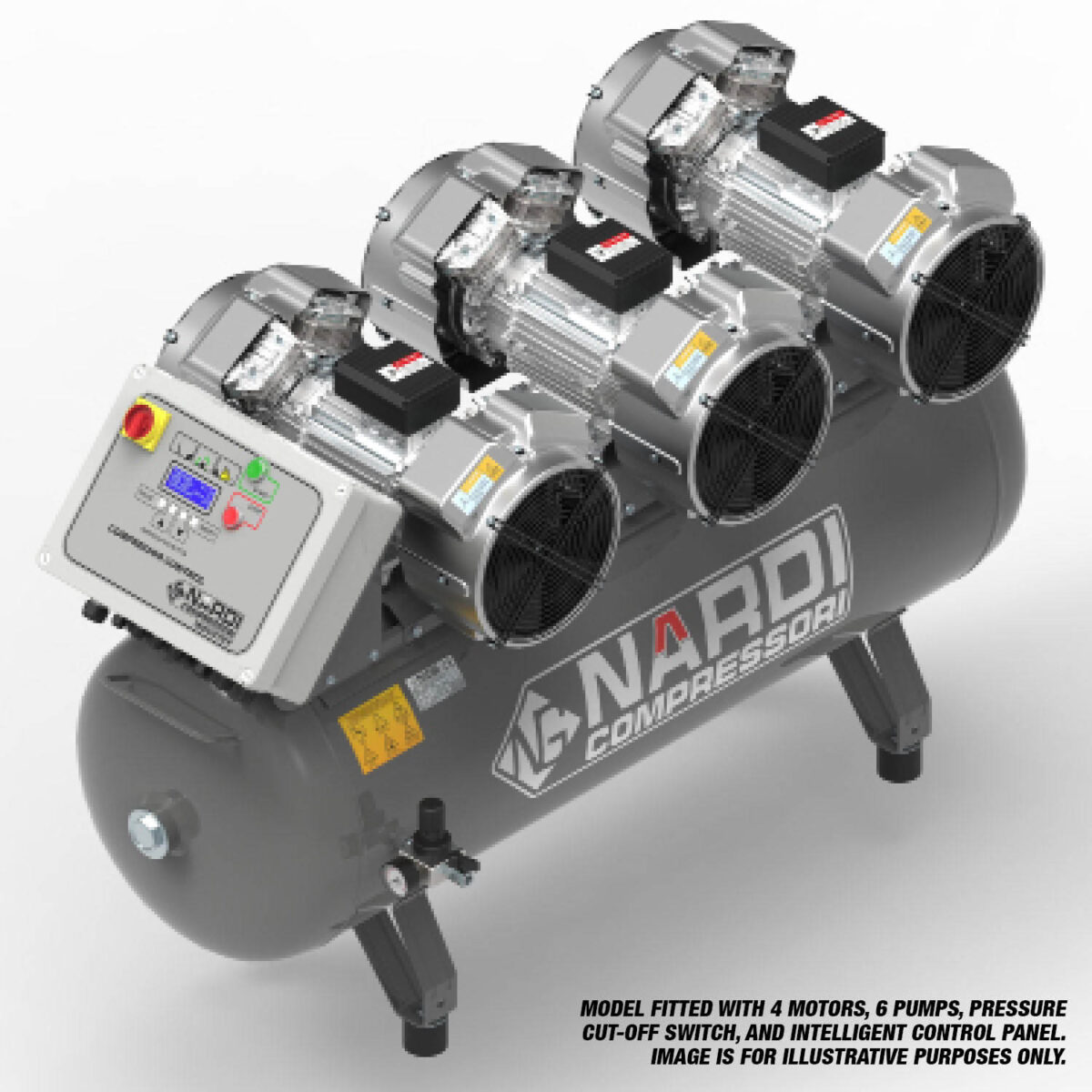

The NARDI EXTREME MP 9HP 270ltr Compressor with Panel is designed for high volume and low pressure applications, delivering powerful air via slow-running motor and oil-free pump, plus an intelligent control for motor control and system monitoring.

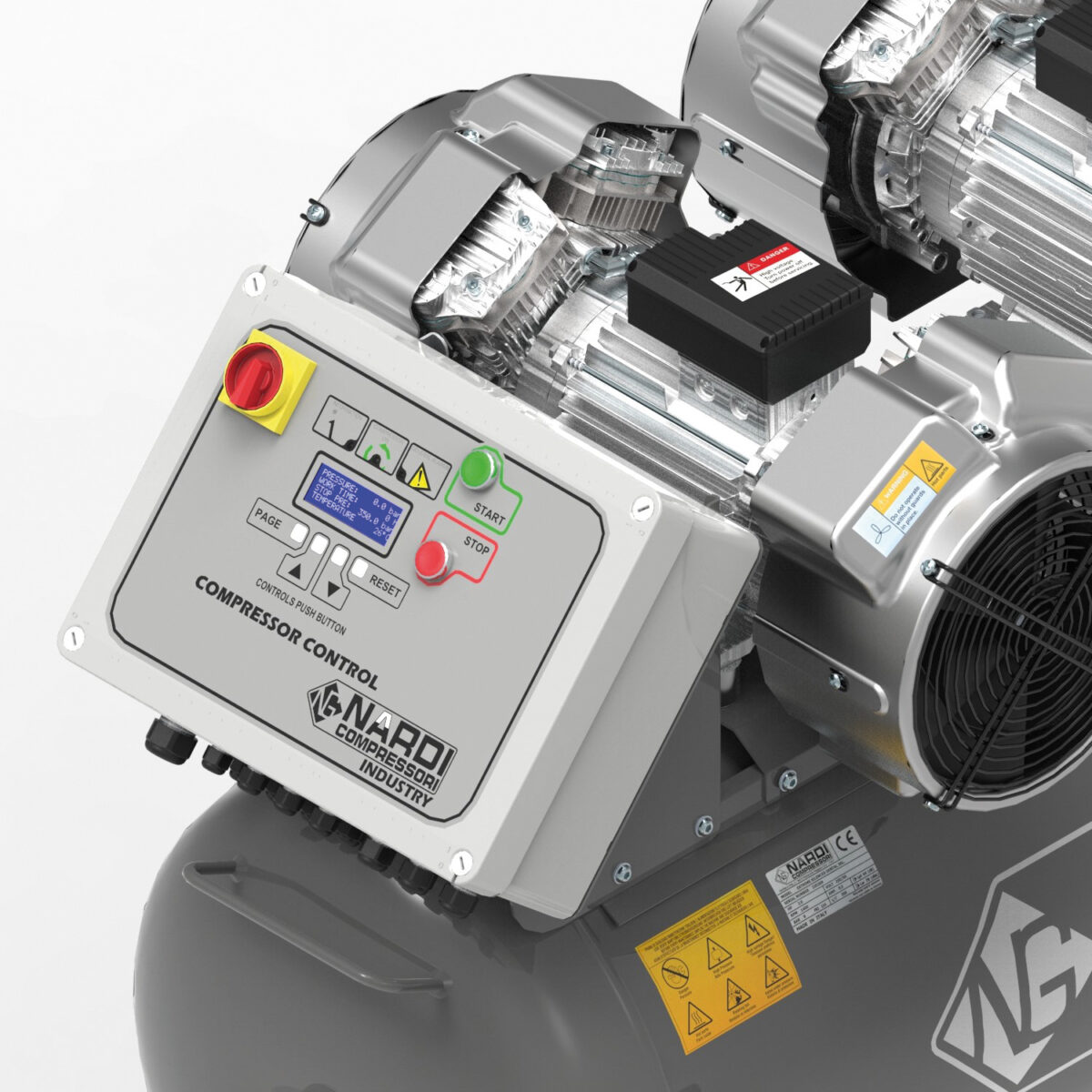

The integrated control panel provides bespoke multi-pump support, delivering even power distribution on up to 3 motor/pump configurations, operating them continually dependant on air requirements and optimising usage.

Elsewhere, the panel features a service internal indicator for maintaining optimum performance and reliability and individual meters and timers to measure pump hours via a microprocessor-controller pump selection.

Ideal for a variety of industrial-grade applications.

• Triple 3-phase slow-running 4-pole motors for high performance
• Intelligent control panel; motor control and system monitoring
• V-Twin cylinder; direct drive crankshaft via motor shaft
• High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
• Concentric big end bearings for reduced vibration and increased pump life
• Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
• Fan-shaped stainless steel valves provide long life and durability
• Forced air cooling for an extended runtime and performance
• Low noise; perfect for noise critical situations

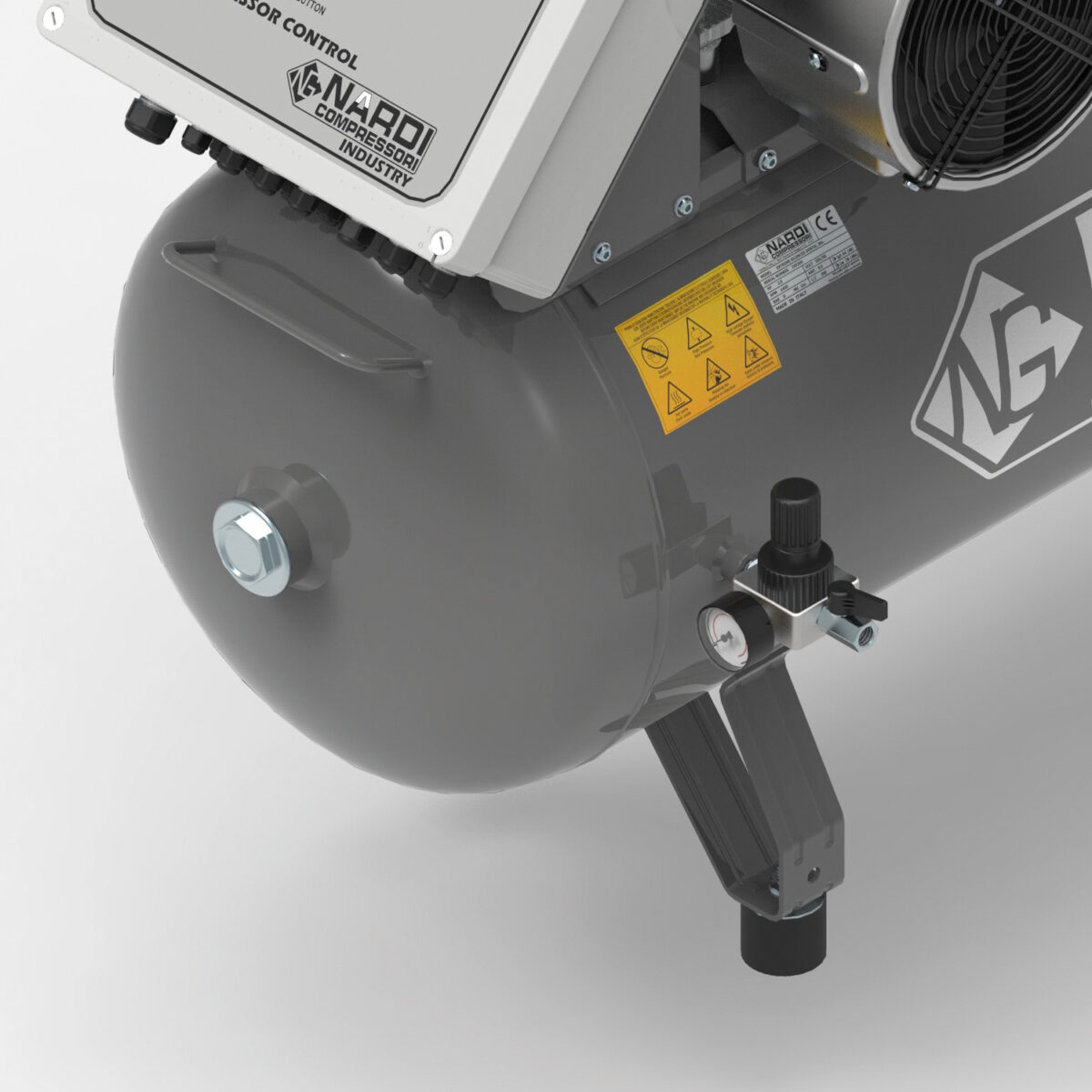

• Built with an adjustable air pressure regulator
• SIP 3-Year Standard Silver Warranty
• Manufactured in Italy

Technical Specification

• ITEM NO. EXTMP27090CP
• Input Supply: 400v 3-PHASE
• Motor Power: 3x 2.20kW (3.00hp) 4-POLE 1400rpm
• Receiver Size: 270ltr
• Piston Displacement: 63.60CFM (1800ltr/min)
• Free Air Delivery (FAD): 44.50CFM (1272ltr/min)
• Max. Air Pressure: 145psi (10bar)
• No. of Cylinders: 12 cylinders
• Noise Level: 75dB(A)
