Description

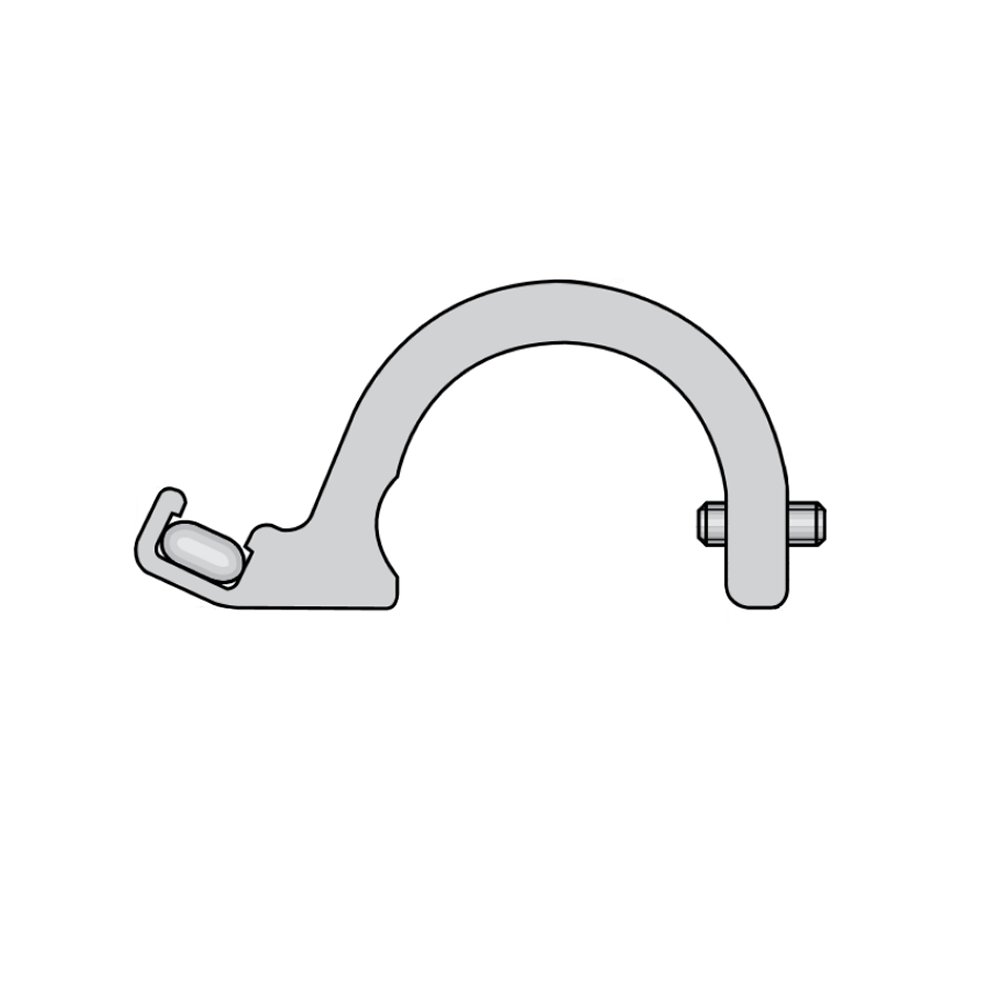

The P8S-TMA sensor bracket cylinder bore sizes Ø32mm to Ø125mm including P1F-T. The anodised aluminium body with a simple mounting screw locking mechanism clamps and securely locates the bracket onto profile tube or tie rod version cylinders providing T-slot mounting for P8S reed or electronic sensors. Each mounting bracket can fit one P8S sensor.

Markets:
▪ Industrial
▪ Food and Beverage
▪ Packaging
▪ Factory Automation
▪ Processing
▪ Transportation

Features/Benefits:
▪ Permits accurate and reliable mounting of P8S position sensors on P1F-T series pneumatic cylinders
▪ Simple screw locking mounting mechanism securely locates the bracket
▪ Suitable for use with P1F-T series cylinders with bore sizes from Ø32mm to Ø125mm

Applications:
▪ Installation of Pneumatic Cylinders

Performance Characteristics:
Body: Anodised aluminium
Screw: Zinc plated steel
Weight (Kg):
     P8S-TMA07: 0.01
     P8S-TMA08: 0.04
For Product Series:
     P8S-TMA07: P1F-T | P1F-N
     P8S-TMA08: P1F-T | P1F-N
For Bore Sizes (mm):
     P8S-TMA07: 32 | 40 | 50 | 63 | 80 | 100
     P8S-TMA08: 125 | 160 | 200 | 250 | 320
For Sensor Series: P8S
