Description

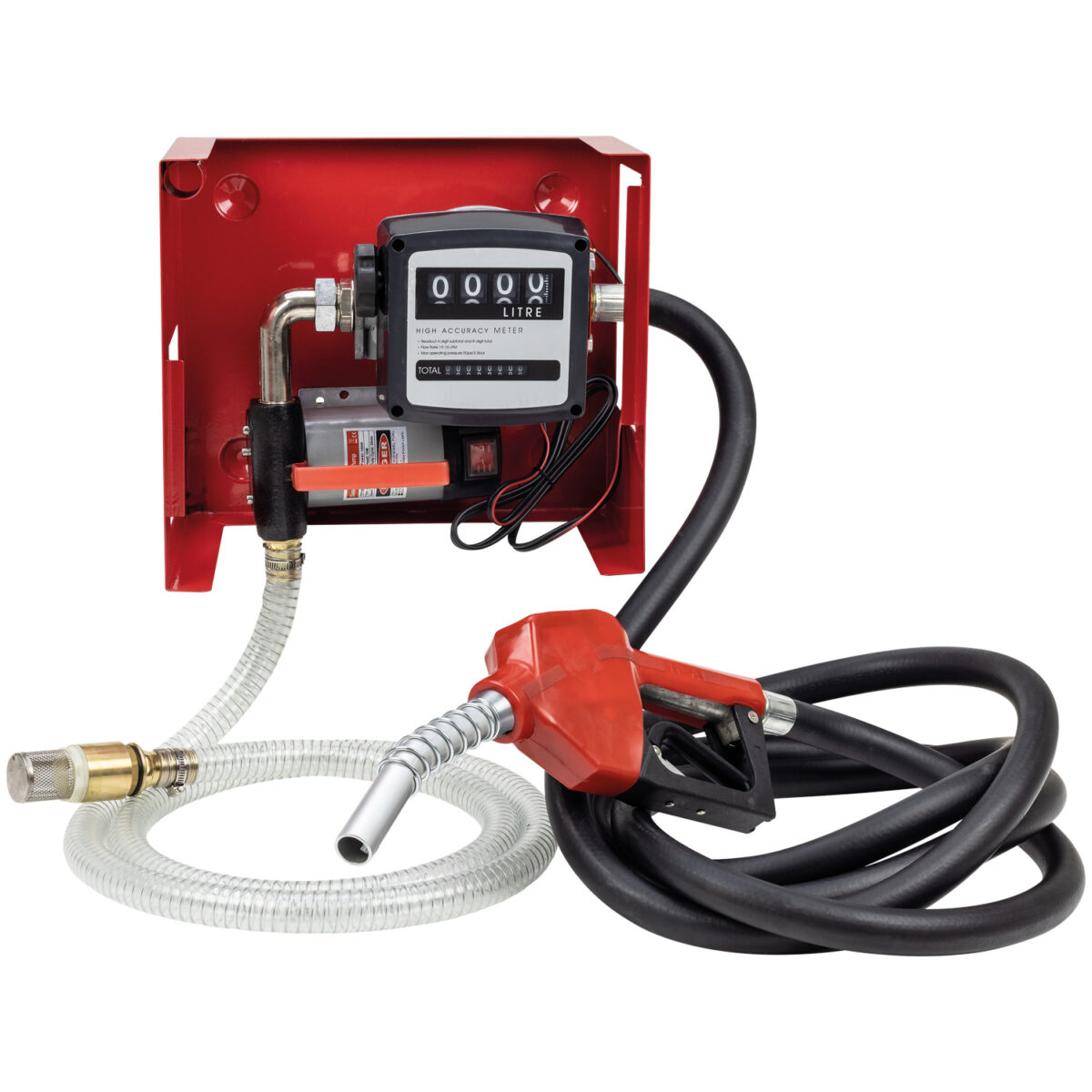

The SIP 12v Diesel Transfer Pump with Fuel Meter is a robust electric diesel transfer pump designed with a reliable, well-constructed fuel meter display plus 10mtr pumping head and 2mtr suction head. This makes it ideal for safe dispensing of diesel and fuels oils, and provides high accuracy and speed-of-use.

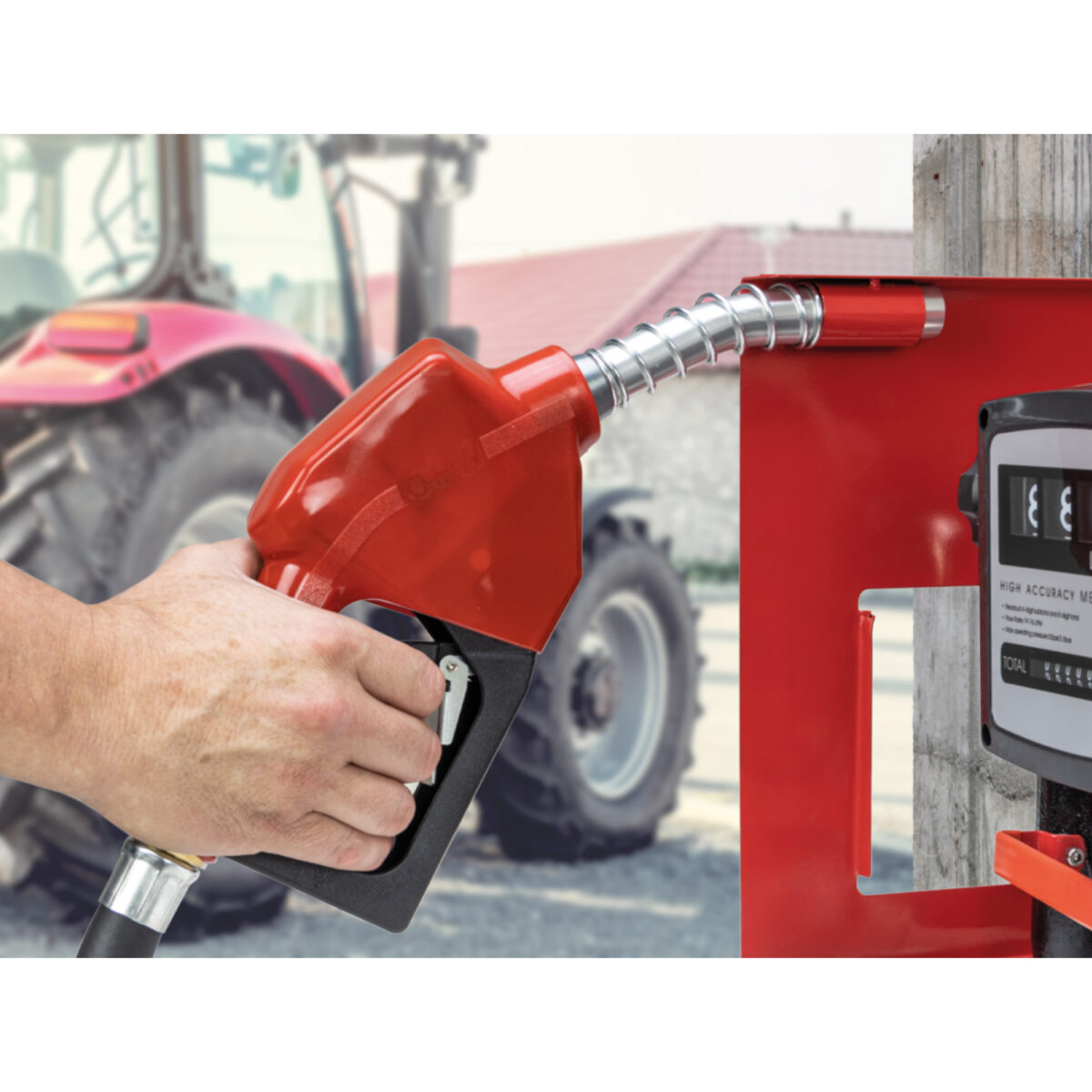

This compact fuel transfer pump with meter is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

• Compact design with wall-mountable bracket
• Meter with 4 digit subtotal and 8 digit grand total
• Powerful 160w DC motor with copper-wound armatures
• High-quality aluminium nozzle for added durability

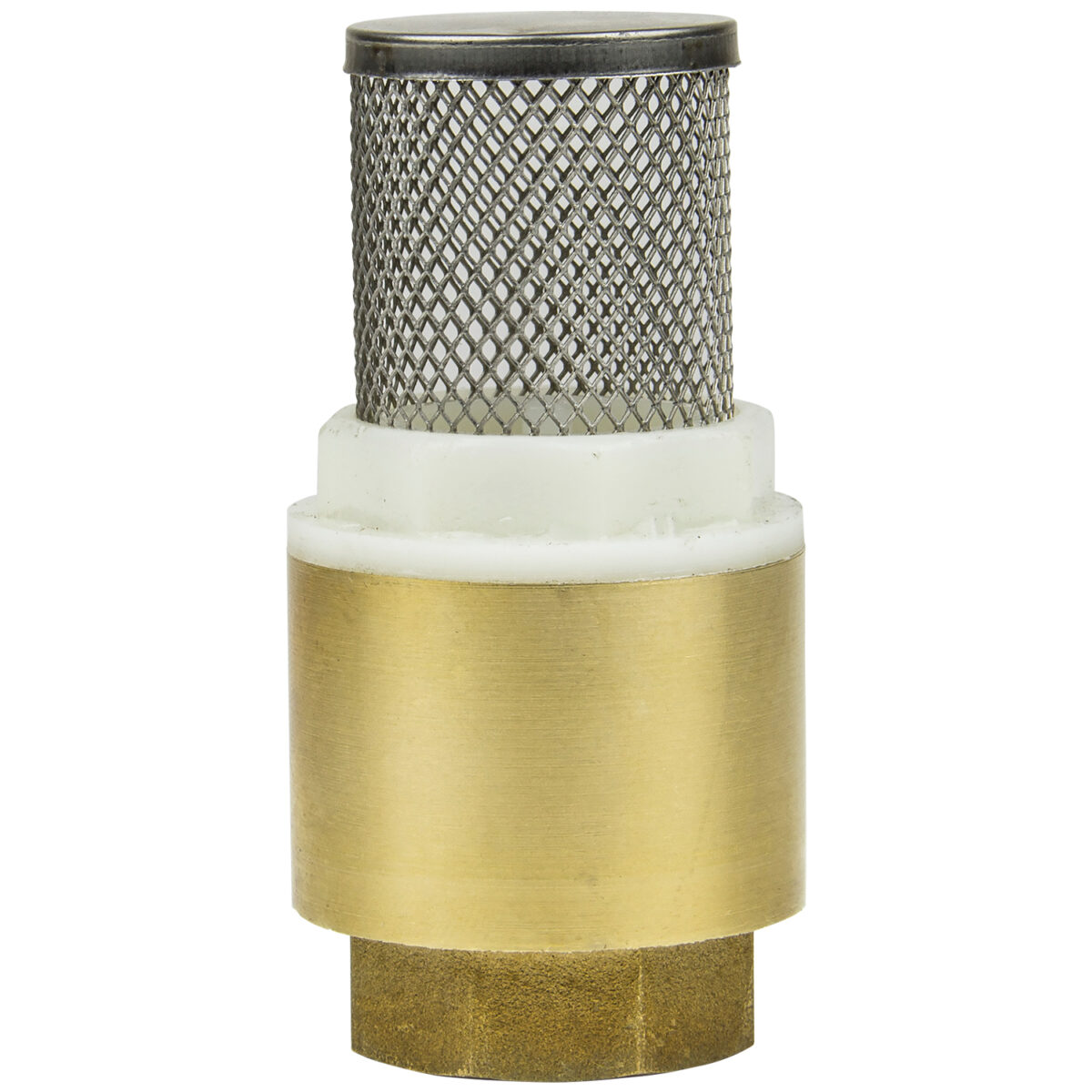

• Supplied with non-return value to aid self-priming
• Built-in bypass system for start and stop operation
• High-quality delivery and suction hoses
• 10mtr pumping head and 2mtr suction head
• 40ltr/min flow rate for easy operation
• SIP 2-Year Standard Silver Warranty

Technical Specification

• ITEM NO. 06805
• Input Voltage: 12v DC
• Motor Power: 160w
• Max. Pumping Head: 10mtr
• Max. Flow Rate: 40ltr/min
• Speed: 3200rpm
• Max. Working Pressure: 15psi (1bar)
• Duty Cycle: 30min
• Connection: 3/4″ BSPProtection: IPX4
• Suction Hose Length: 2mtr
• Delivery Hose Length: 4mtr
