Description

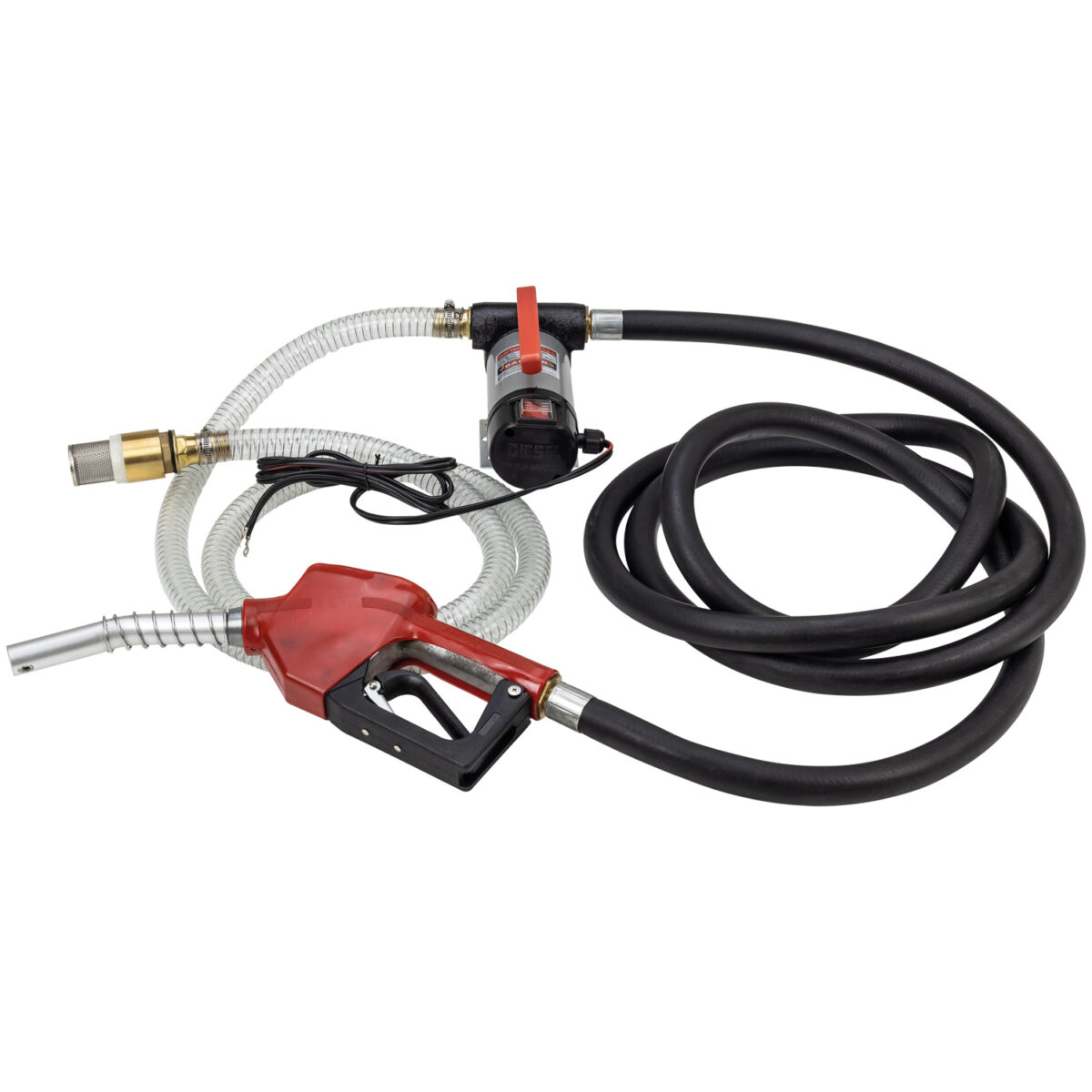

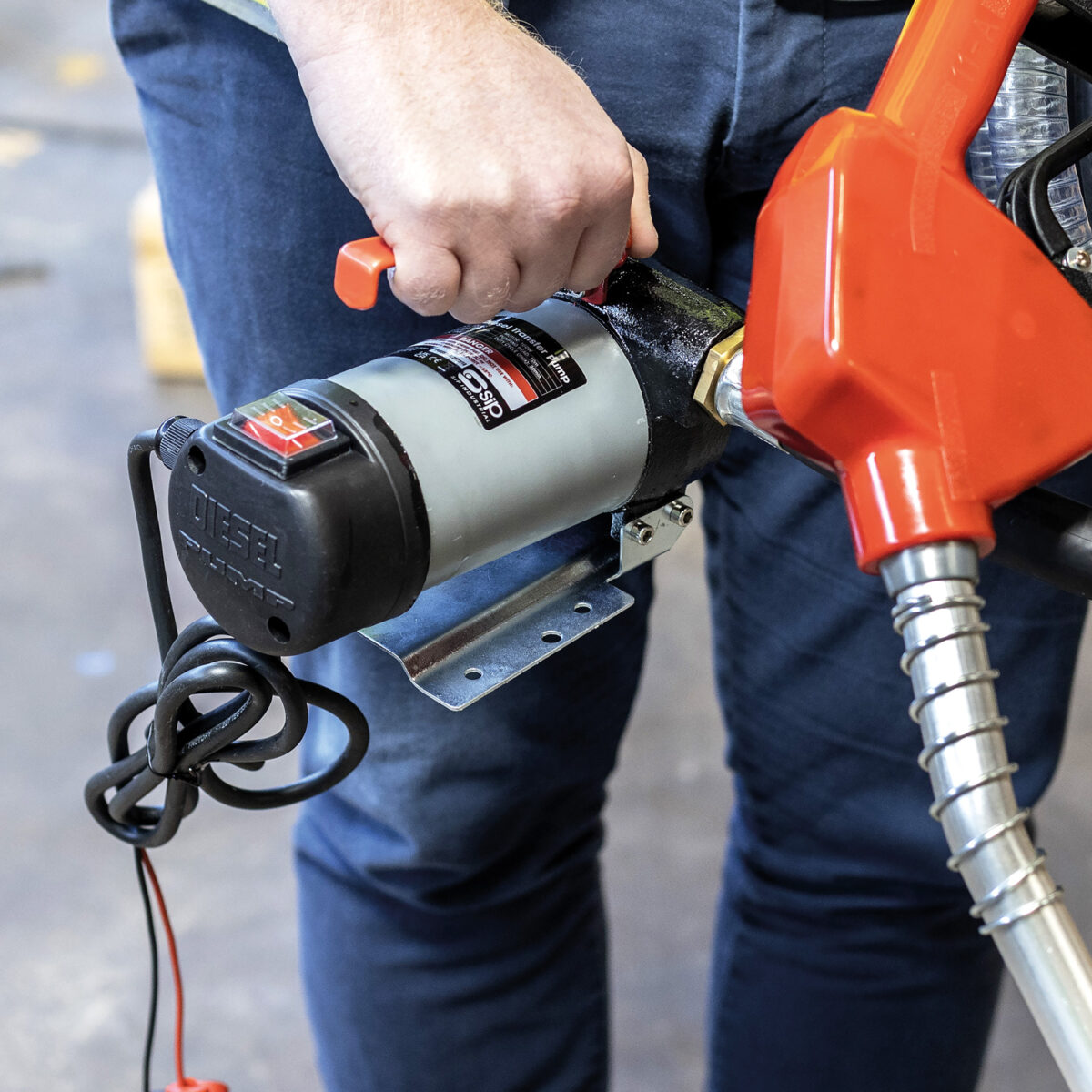

The SIP 24v Diesel Transfer Pump is a robust electric diesel transfer pump developed for safe dispensing of diesel and fuel oils. This high-quality long-lasting fuel dispenser has a 10mtr pumping head and 2mtr suction head for versatility and speed-of-use.

This compact and lightweight fuel transfer pump is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

• Compact and lightweight design for portability
• Powerful 160w DC motor with copper-wound armatures
• High-quality aluminium nozzle for added durability

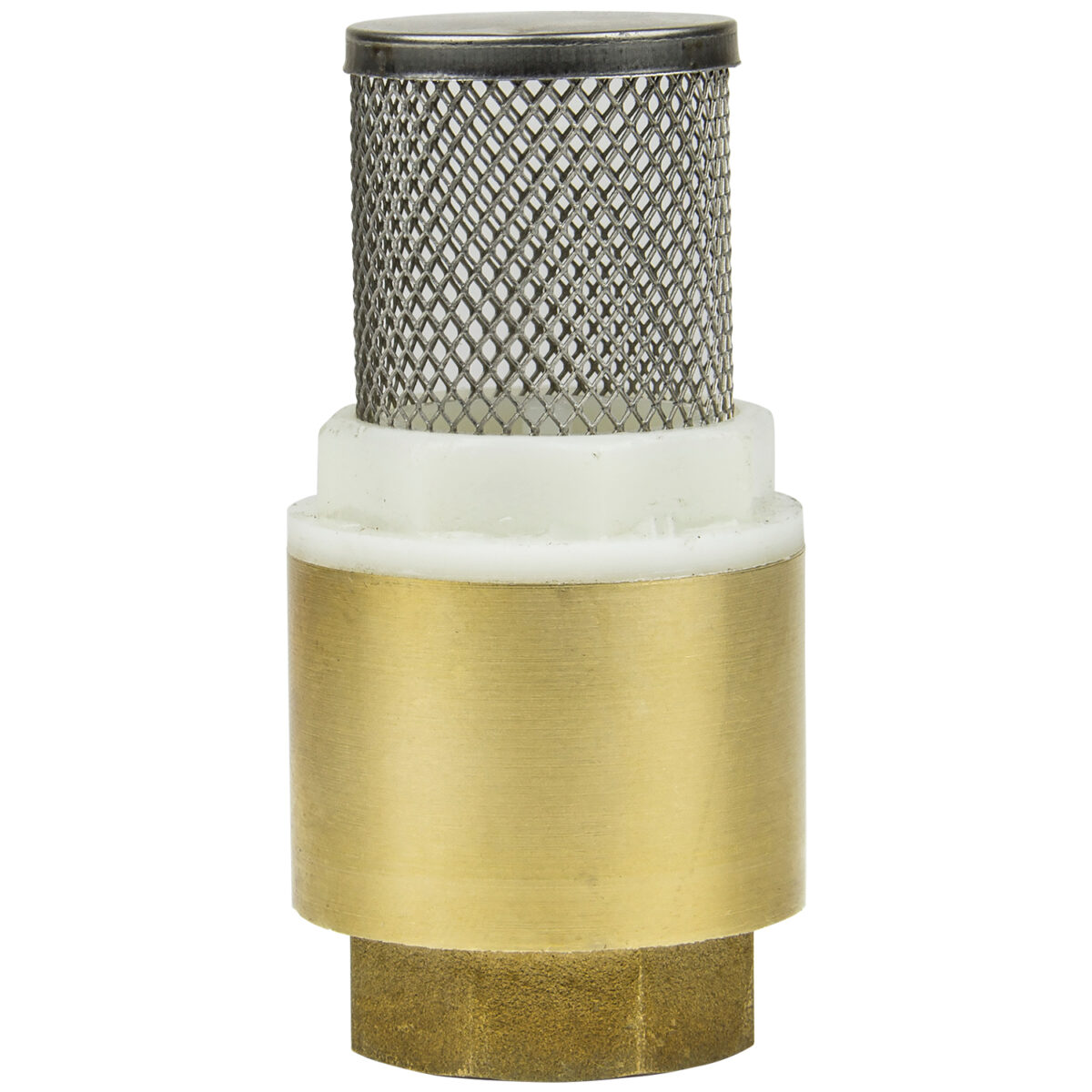

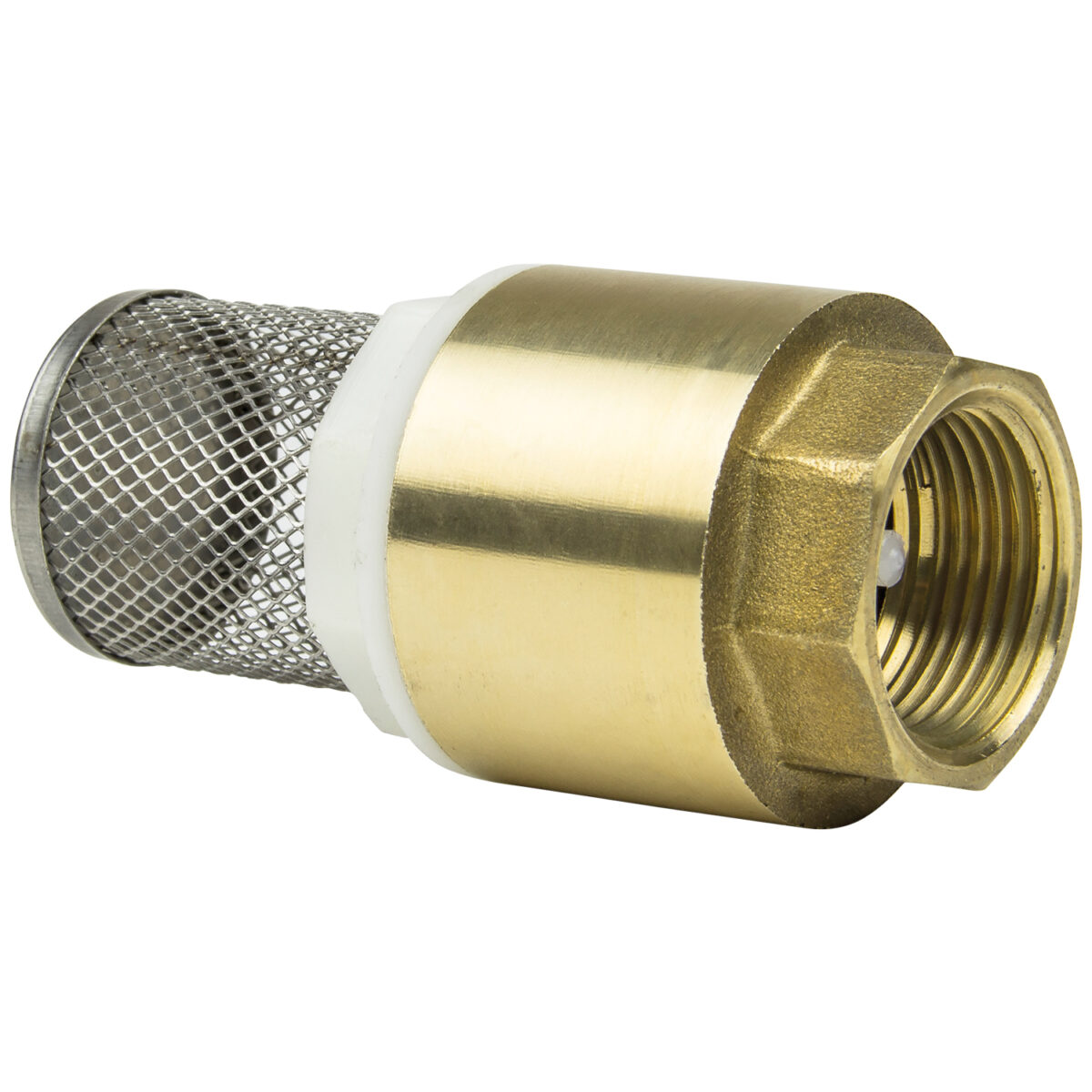

• Supplied with non-return valve to aid self-priming
• Built-in bypass system for start and stop operation
• 10mtr pumping head and 2mtr suction head
• 40ltr/min flow rate for easy operation
• High-quality delivery and suction hoses
• SIP 2-Year Standard Silver Warranty

Technical Specification

• ITEM NO. 06803
• Input Voltage: 24v DC
• Motor Power: 160w
• Max. Pumping Head: 10mtr
• Max. Flow Rate: 40ltr/min
• Speed: 3200rpm
• Max. Working Pressure: 15psi (1bar)
• Duty Cycle: 30min
• Connection: 3/4″ BSP
• Protection: IPX4
• Suction Hose Length: 2mtr
• Delivery Hose Length: 4mtr
