Description

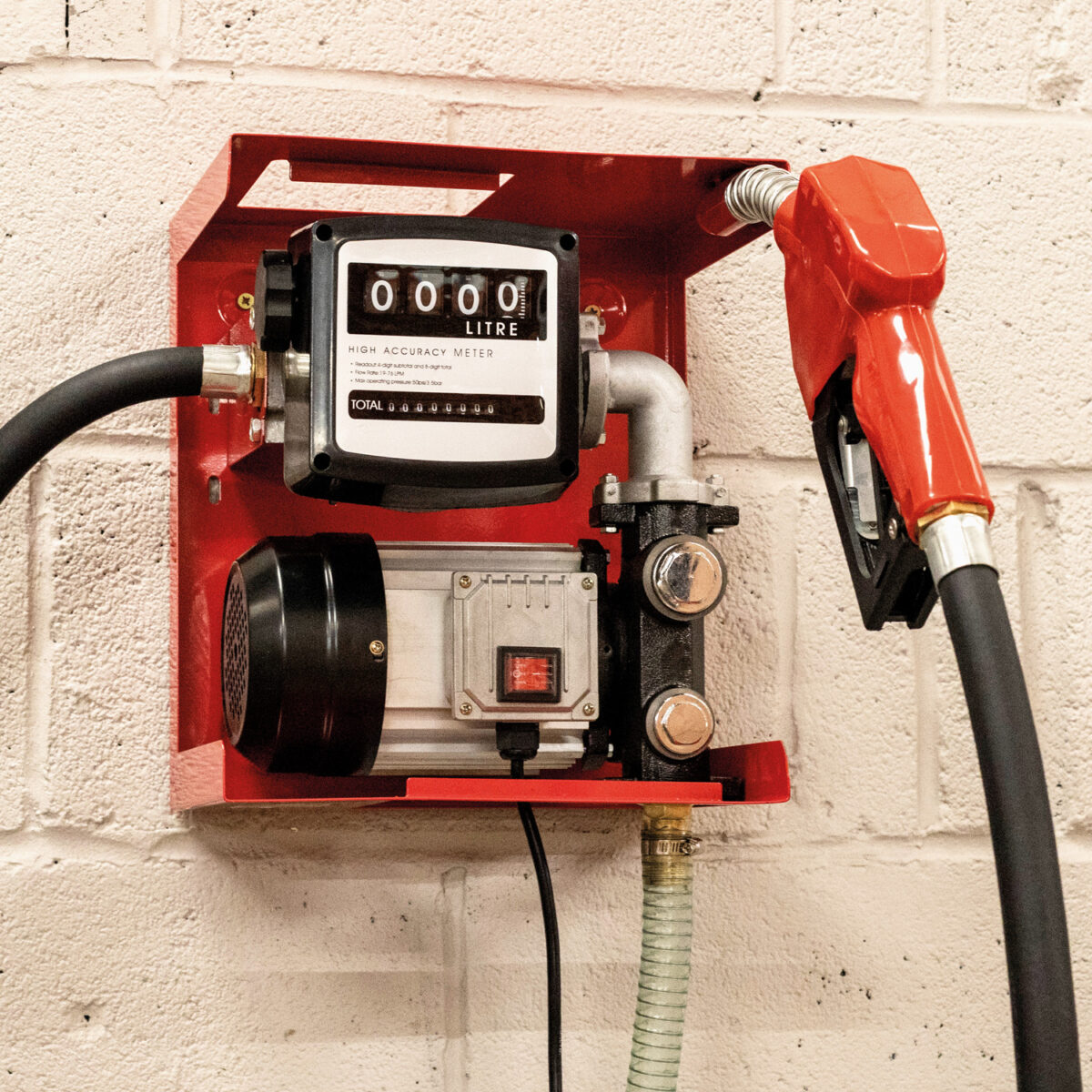

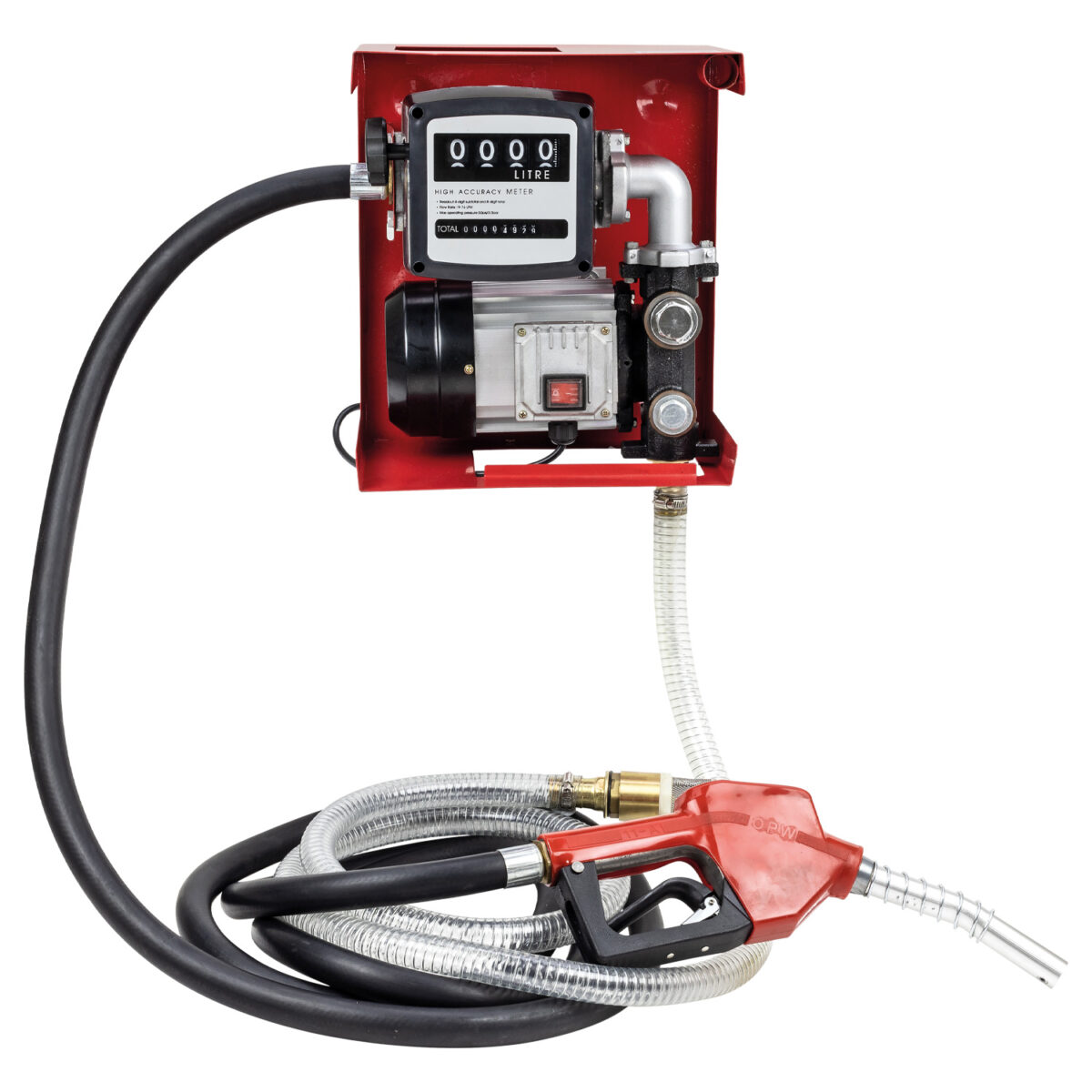

The SIP 230v Diesel Transfer Pump with Fuel Meter is a robust electric diesel transfer pump designed with a reliable, well-constructed fuel meter display plus 15mtr pumping head and 2mtr suction head. This makes it ideal for safe dispensing of diesel and fuel oils, and provides high accuracy and speed-of-use.

This compact fuel transfer pump with meter is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

• Compact design with wall-mountable bracket
• Meter with 4 digit subtotal and 8 digit grand total
• Powerful 550w AC motor with copper-wound armatures
• High-quality aluminium nozzle for added durability
• Supplied with non-return value to aid self-priming
• Built-in bypass system for start and stop operation
• High-quality delivery and suction hoses
• 15mtr pumping head and 2mtr suction head
• 60ltr/min flow rate for easy operation
• SIP 2-Year Standard Silver Warranty

Technical Specification

• ITEM NO. 06807
• Input Voltage: 230v AC
• Motor Power: 550w
• Max. Pumping Head: 15mtr
• Max. Flow Rate: 60ltr/min
• Speed: 2850rpm
• Max. Working Pressure: 22psi (1.5bar)
• Duty Cycle: 30min
• Connection: 1″ BSP
• Protection: IPX4
• Suction Hose Length: 2mtr
• Delivery Hose Length: 4mtr
