Description

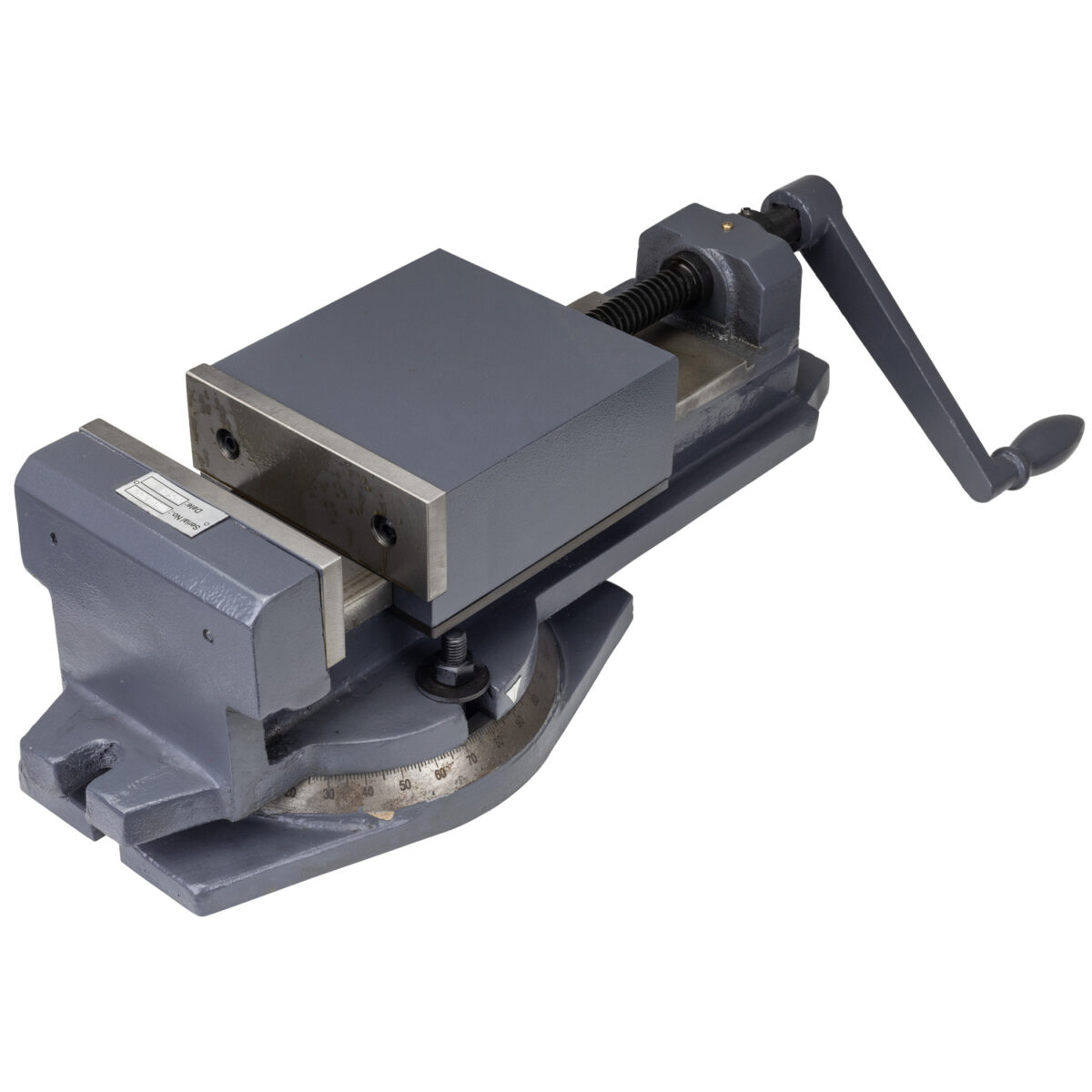

The SIP 6″ Swivel Machine Vice enables simple horizontal 0° to 360° rotation, meaning workpieces do not need to be unclamped to be repositioned. This helps to reduce the set-up time required when machining, maintains drilling accuracy and improves tool access.

Offering maximum versatility in professional metalworking and fabrication, this vice is compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.

Applications & uses: Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: suitable for milling, grinding and light machining, slotting and face or end milling.

What’s in the box?: 1x SIP 6″ Swivel Machine Vice.

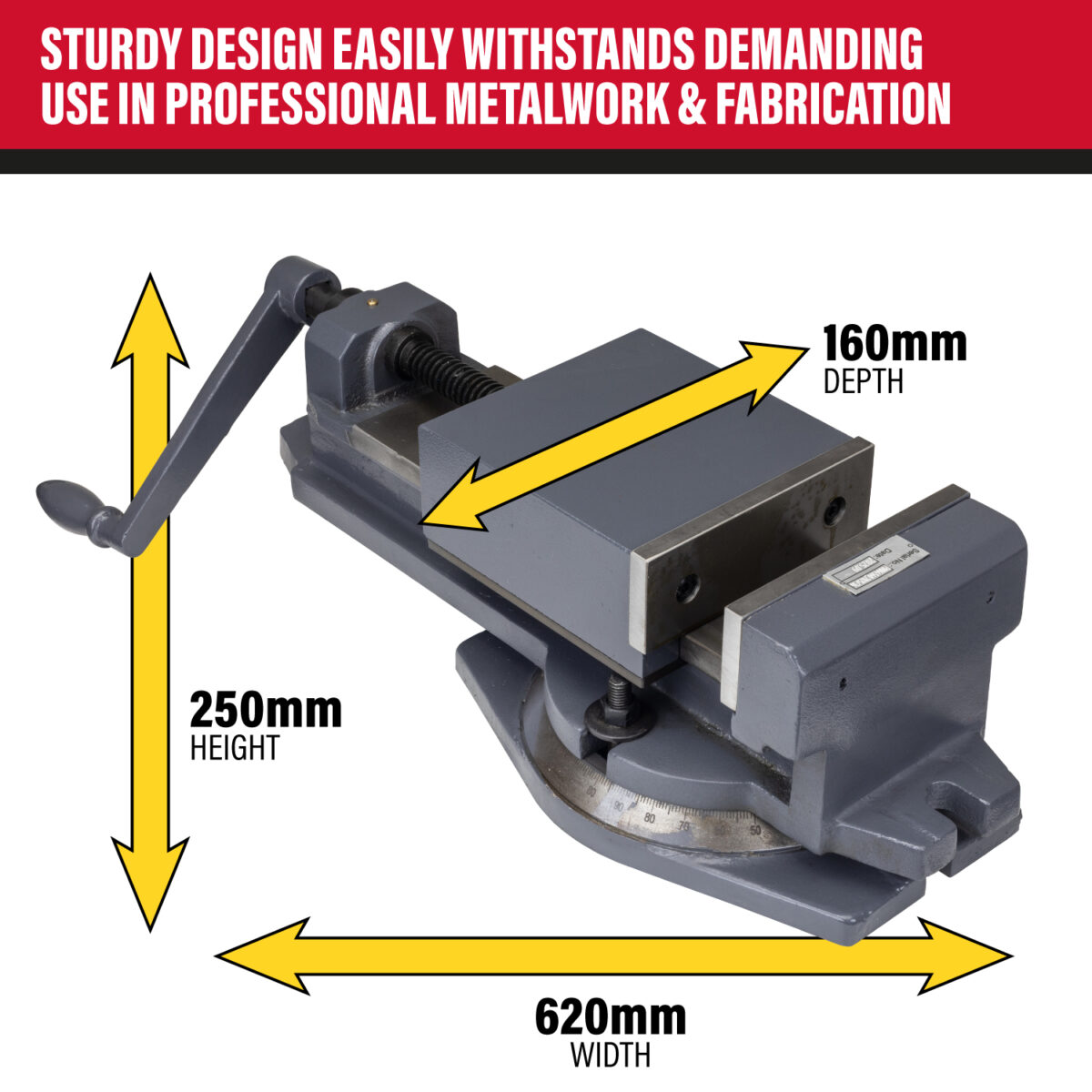

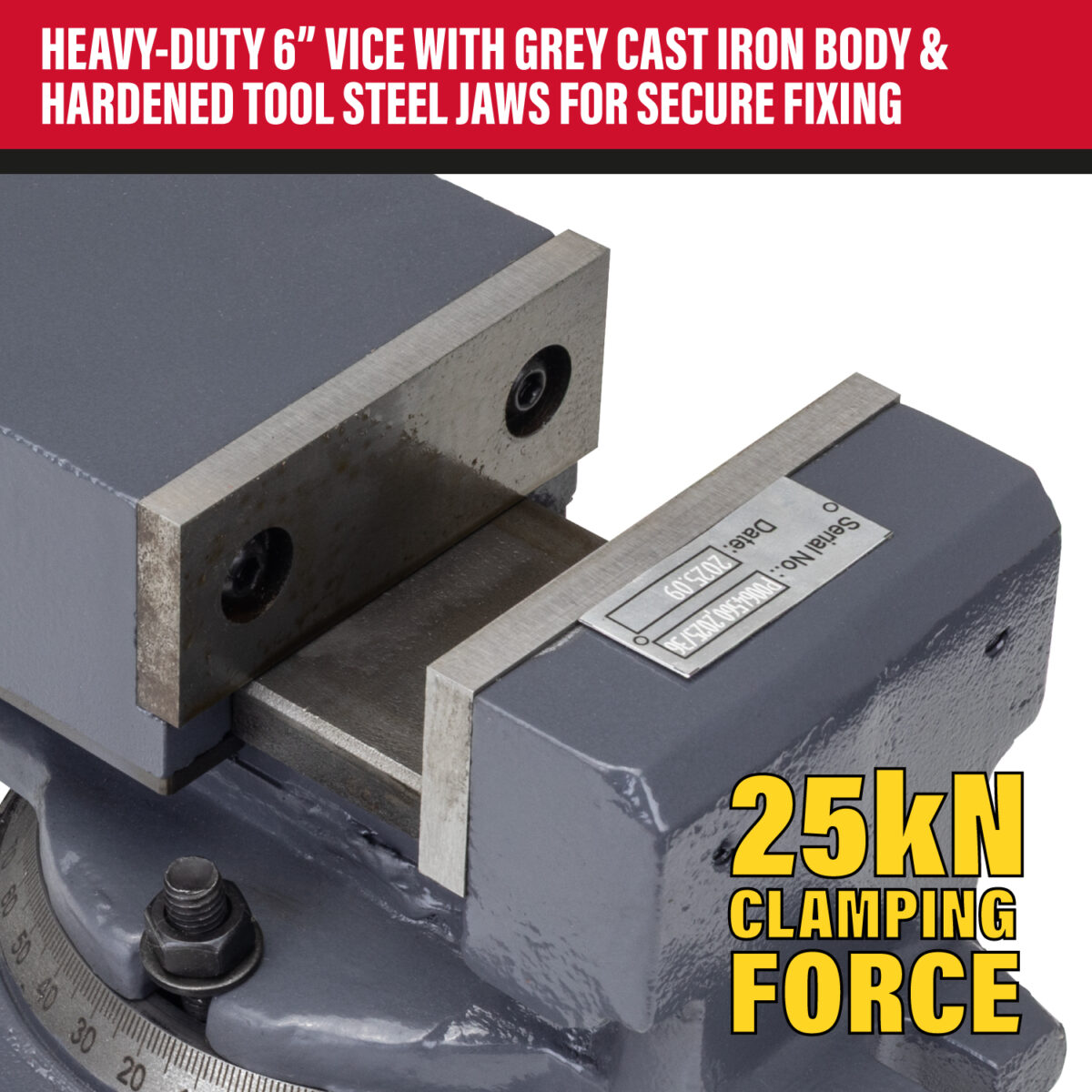

• HEAVY-DUTY 6″ MACHINE VICE EASILY WITHSTANDS DEMANDING USE IN PROFESSIONAL METALWORK & FABRICATION WORKSHOPS: High-quality machine vice with 6″ jaw opening and 25kN clamping force for secure fixing of workpieces in a variety of positions. Built with a robust grey cast iron machine vice body and hardened tool steel jaws for outstanding durability and secure clamping. The jaw is fixed to the vice body, allowing perpendicularity and parallelism within 0.05mm/100mm.

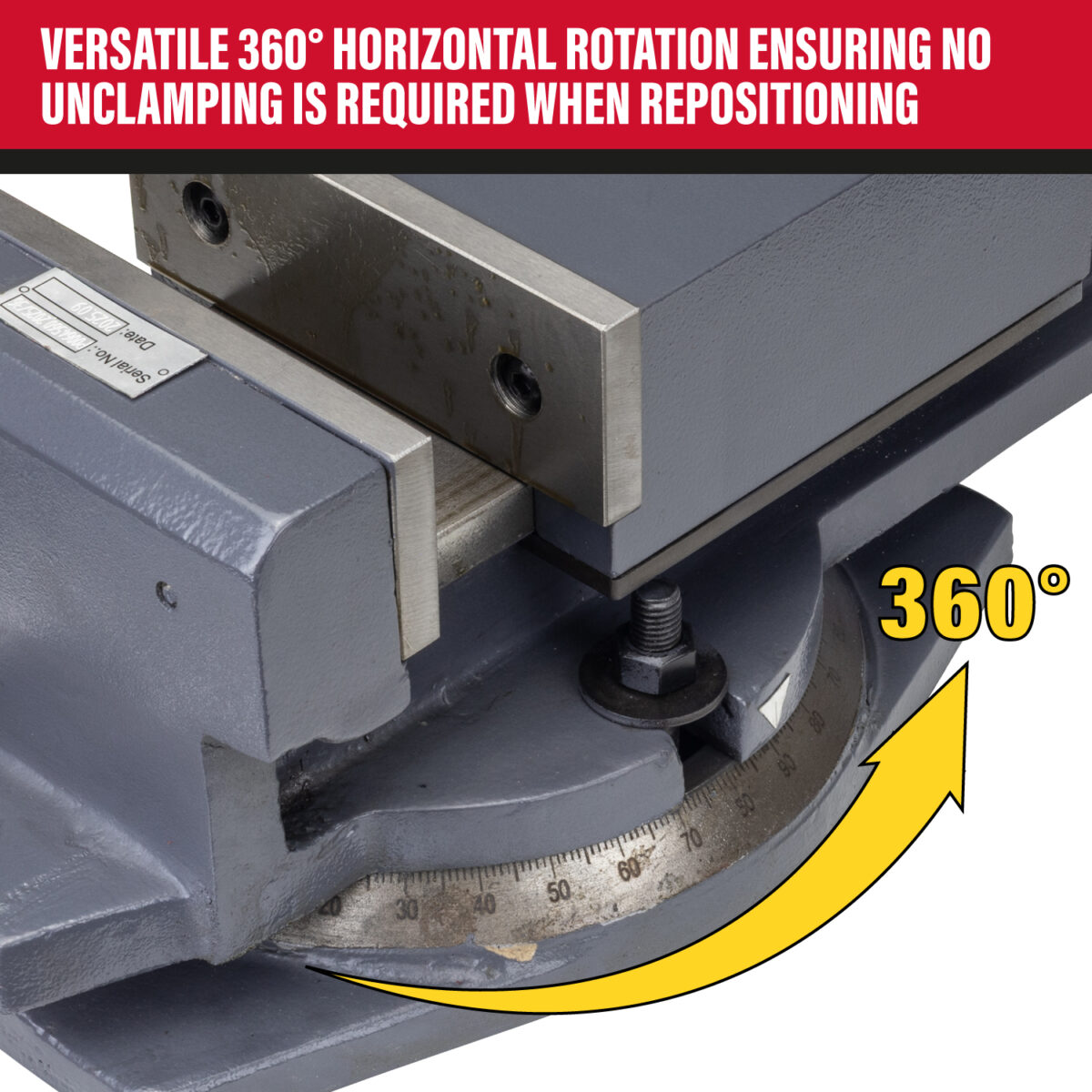

• ROTATING SWIVEL BASE FOR INCREASED FLEXIBILITY WHEN POSITIONING WORKPIECES: Mounted on a durable swivel base that allows unrestricted 0° to 360° rotation of a workpiece to the desired angle without need to unclamp it. This function ensures high versatility and, because pieces do not need to be unclamped, maintains accuracy during complex drilling. Specific angles can be set using the angle gauge built into the swivel base.
• COMPATIBLE WITH THE COMPLETE SIP INDUSTRIAL FLOOR PILLAR DRILL RANGE: SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill (01719), SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill (01720) and 01721 SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill (01721).

Technical Specification

• ITEM NO. 01729
• Jaw Width: 6″ (152mm)
• Jaw Opening: 6″ (152mm)
• Jaw Depth: 2″ (51mm)
• Clamping Force: 25kN
• Vice Height: 6″ (152mm)
• Base Type: Swivel
• Base Size: 11.5″ (292mm) x 8.4″ (214mm)
• Composition: Grey cast iron (body), hardened tool steel (jaws)
• Mounting Hole Size: 18mm
• Accuracy / Parallelism: 0.05mm / 100mm
