Description

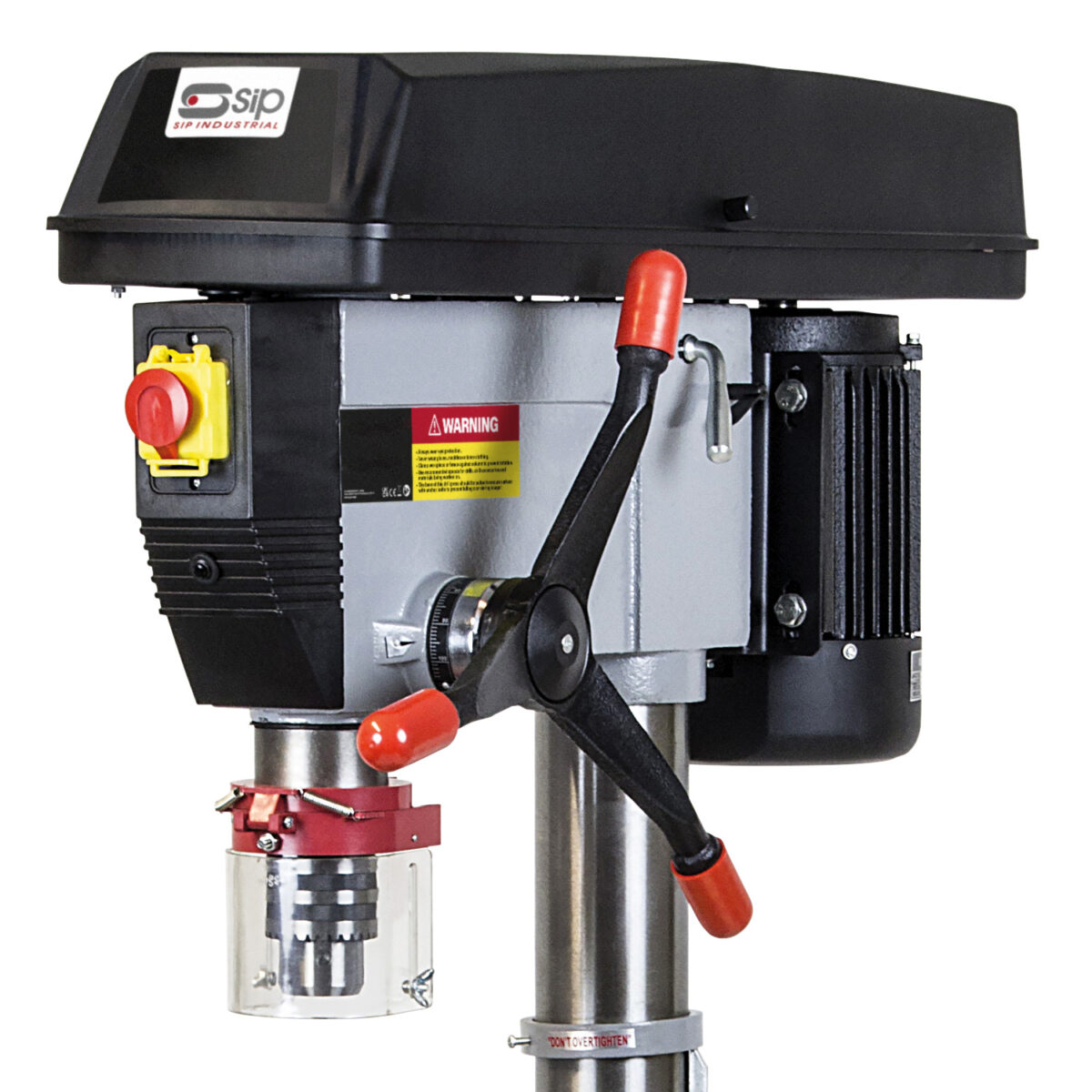

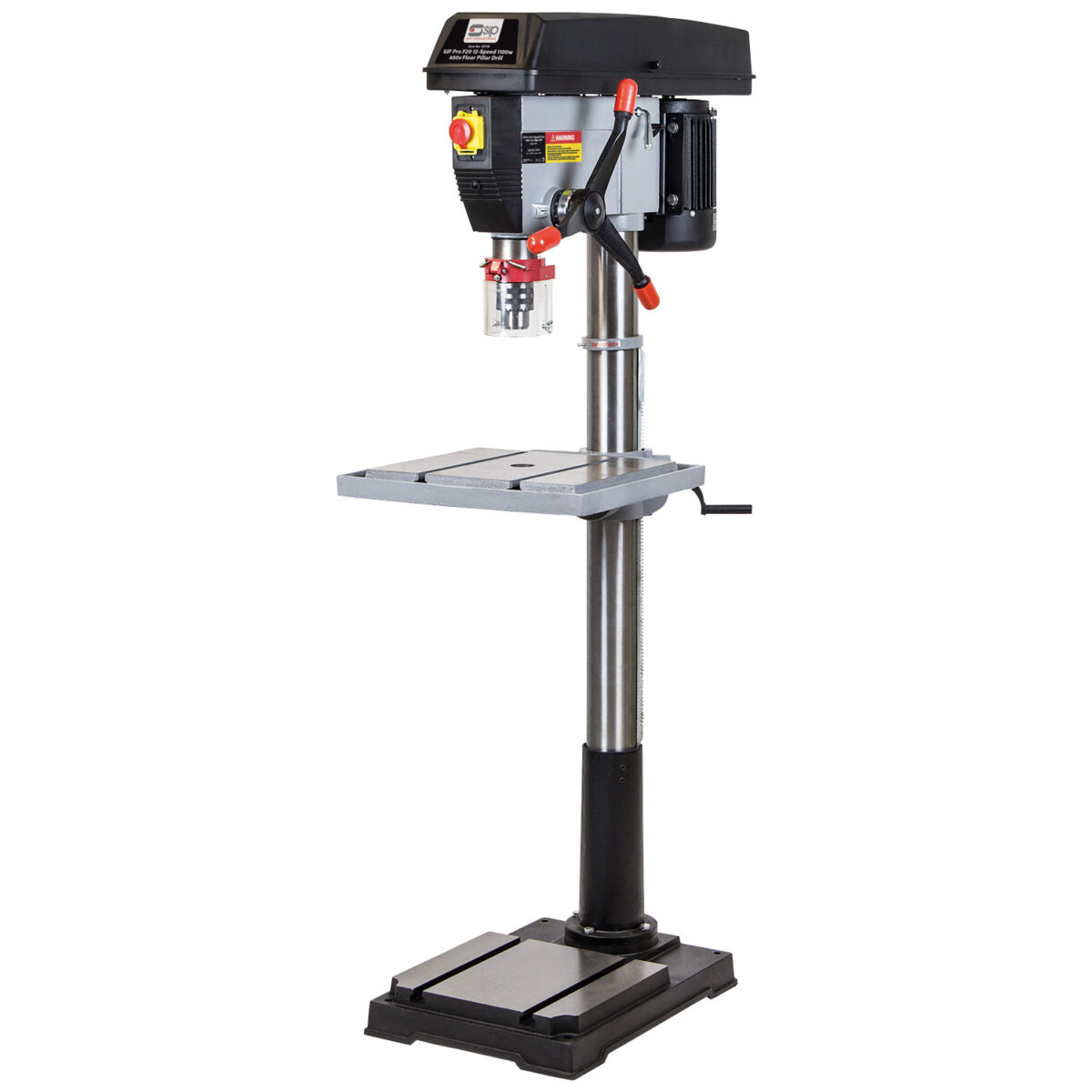

The SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned for accurate drilling. Plus, it’s MT4 fitting allows for a larger drilling capacity.

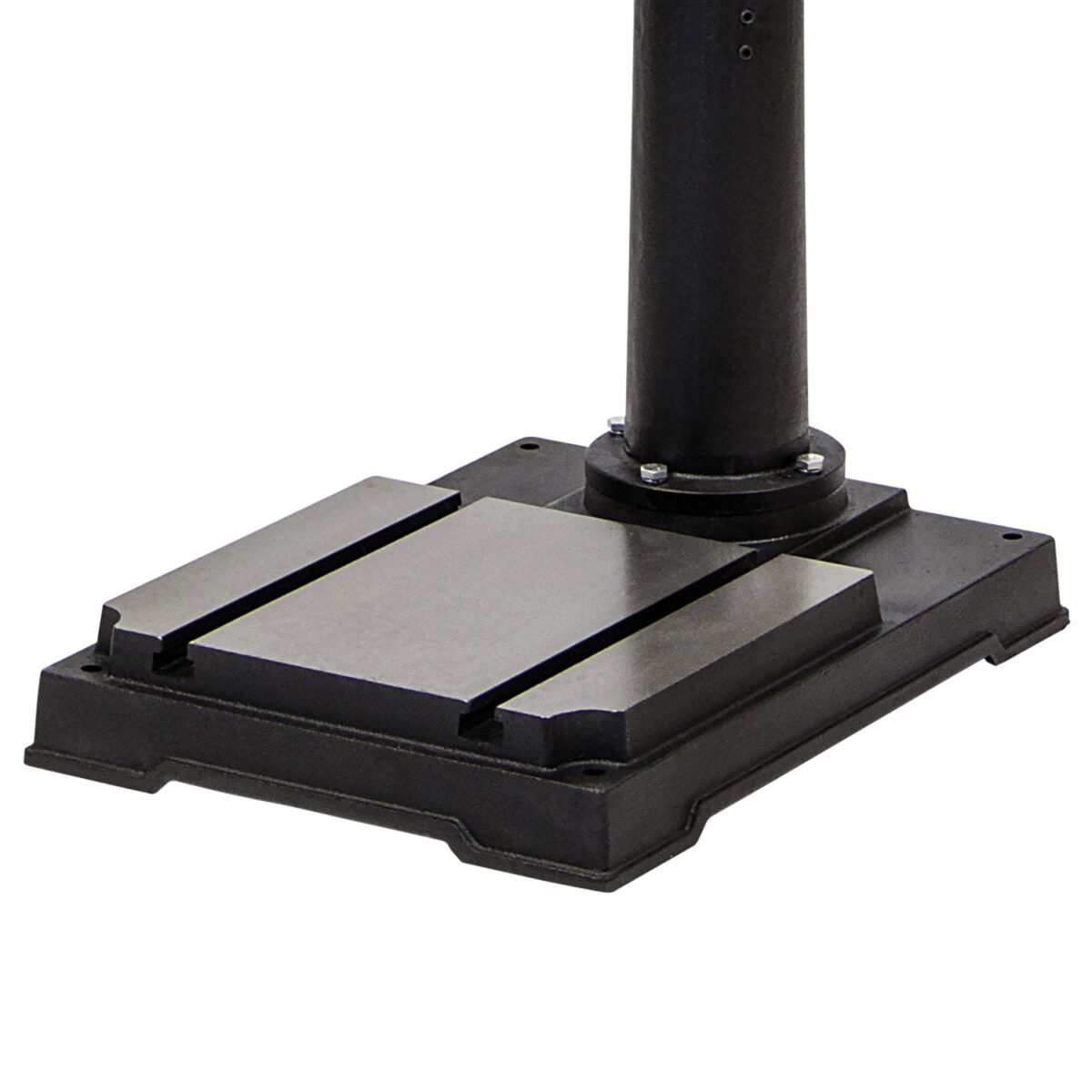

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings.

Applications & uses: Suitable for ferrous and non-ferrous metals, woods, and plastics. The MT4 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, heavy-duty use for larger hole drilling with engineering workshop components, plus metalwork and woodwork environments.

• SUPPORTS A VARIETY OF DRILLING APPLICATIONS: A large drilling capacity via an MT4 fitting is ideal for materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.
• MULTI-SPEED FUNCTIONALITY: Allows precise control of hole sizes across the drilling spectrum.
• HIGH-POWER BRUSHLESS INDUCTION MOTOR: Delivers powerful performance for consistent high-quality drilling.
• INTUITIVE FEATURES FOR EASE-OF-USE: Adjustable drilling table and 3-lever handle ensures smooth drilling force.
• FITTED WITH DRILLING DEPTH STOP: Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

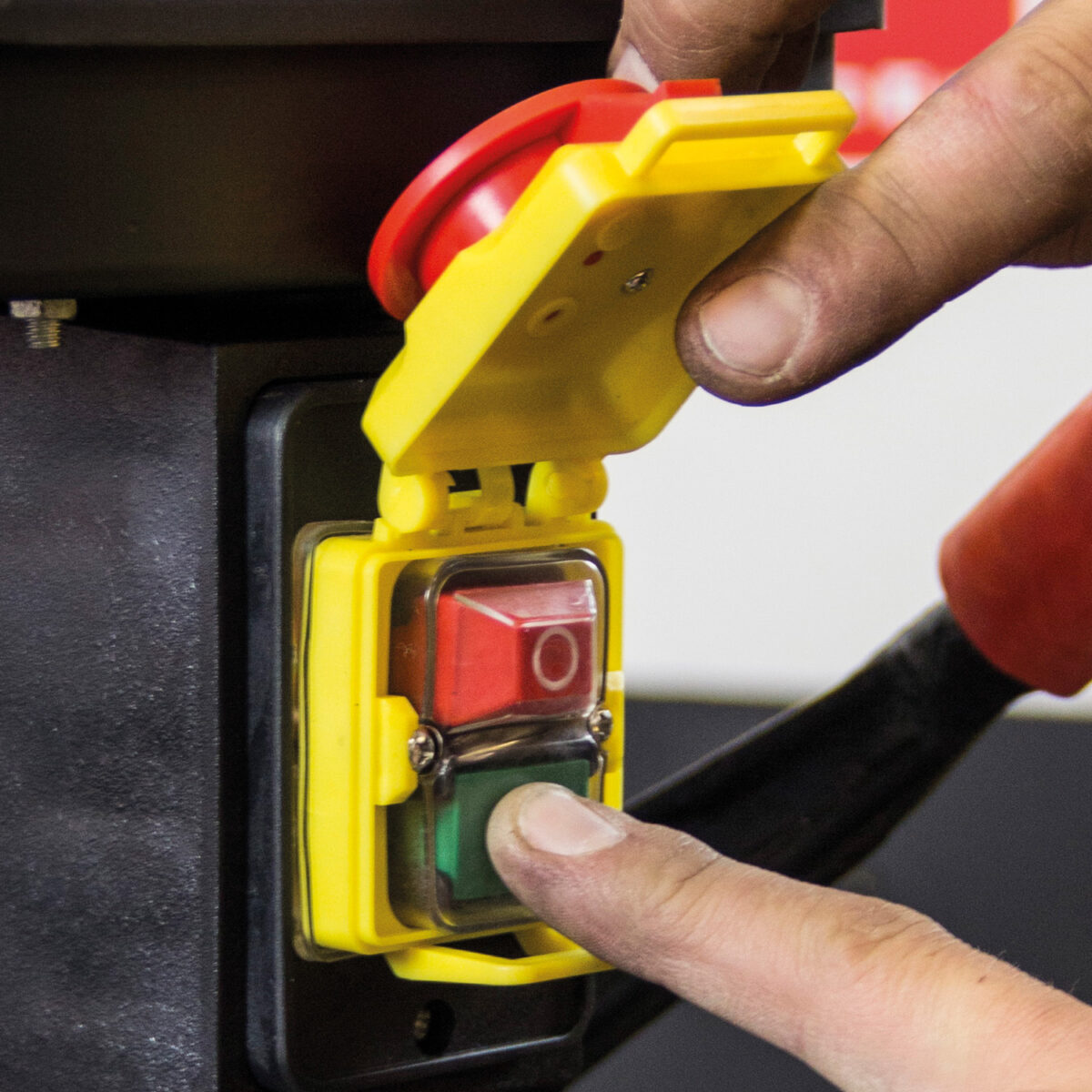

• SAFETY INTERLOCK SWITCH: Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.
• SIP 2-YEAR STANDARD SILVER WARRANTY*

Technical Specification

• ITEM NO. 01718
• Input Voltage: 400v 3-PHASE
• Motor Power: 1100w
• No. of Speeds: 12 speeds
• Speed Range: 150rpm – 2500rpm
• Drill Bit Size: 5mm – 20mm
• Max. Drilling Capacity: 32mm
• Spindle Taper: MT4
• Table Size: 420mm x 470mm
• Base Size: 570mm x 425mm
• Column Diameter: Ø 92mm
• Swing: 506mm
• Height: 1720mm
• Spindle Travel: 120mm
• Collar Diameter: Ø 92mm
• Max. Distance: 620mm (chuck to table) / 1095mm (chuck to base)
