Description

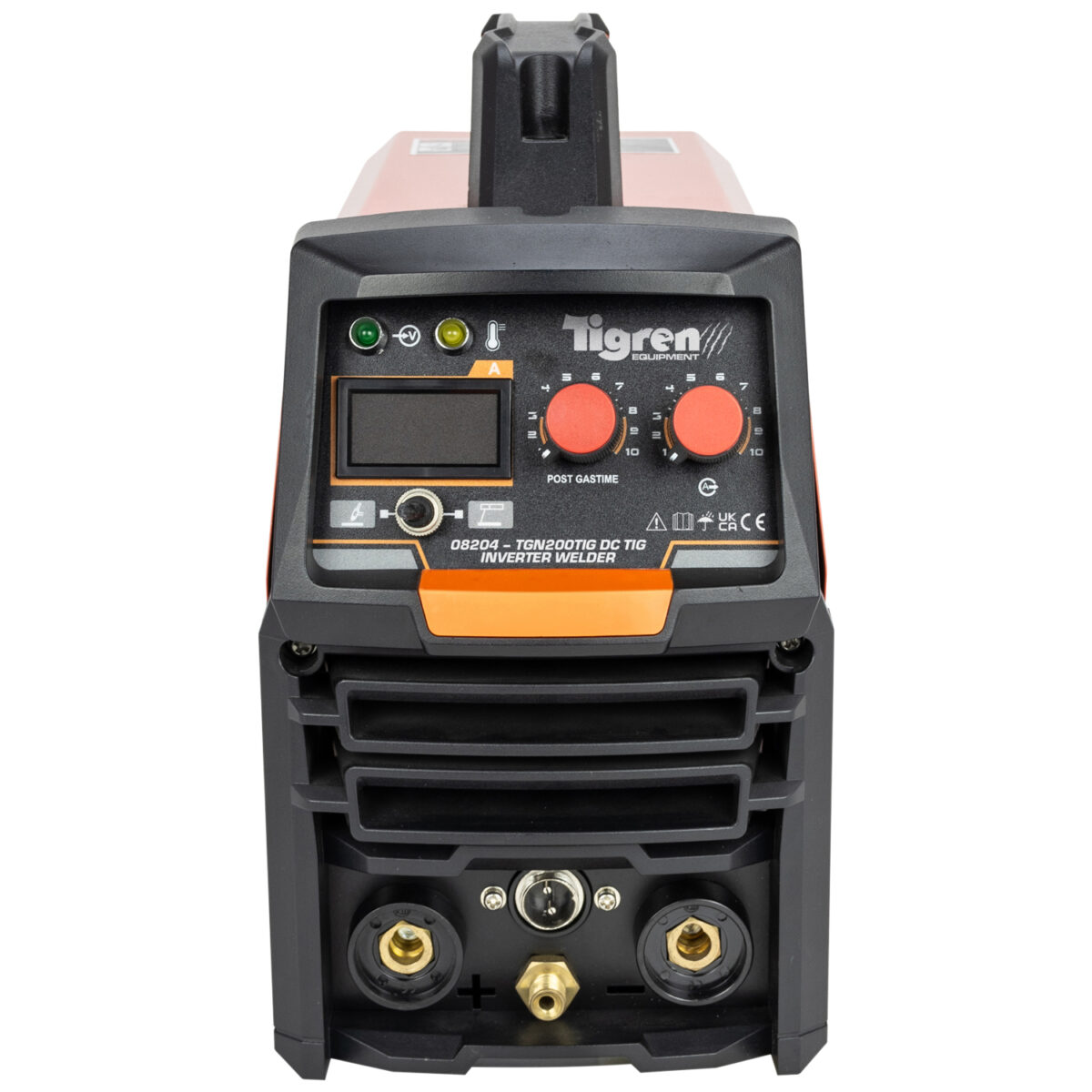

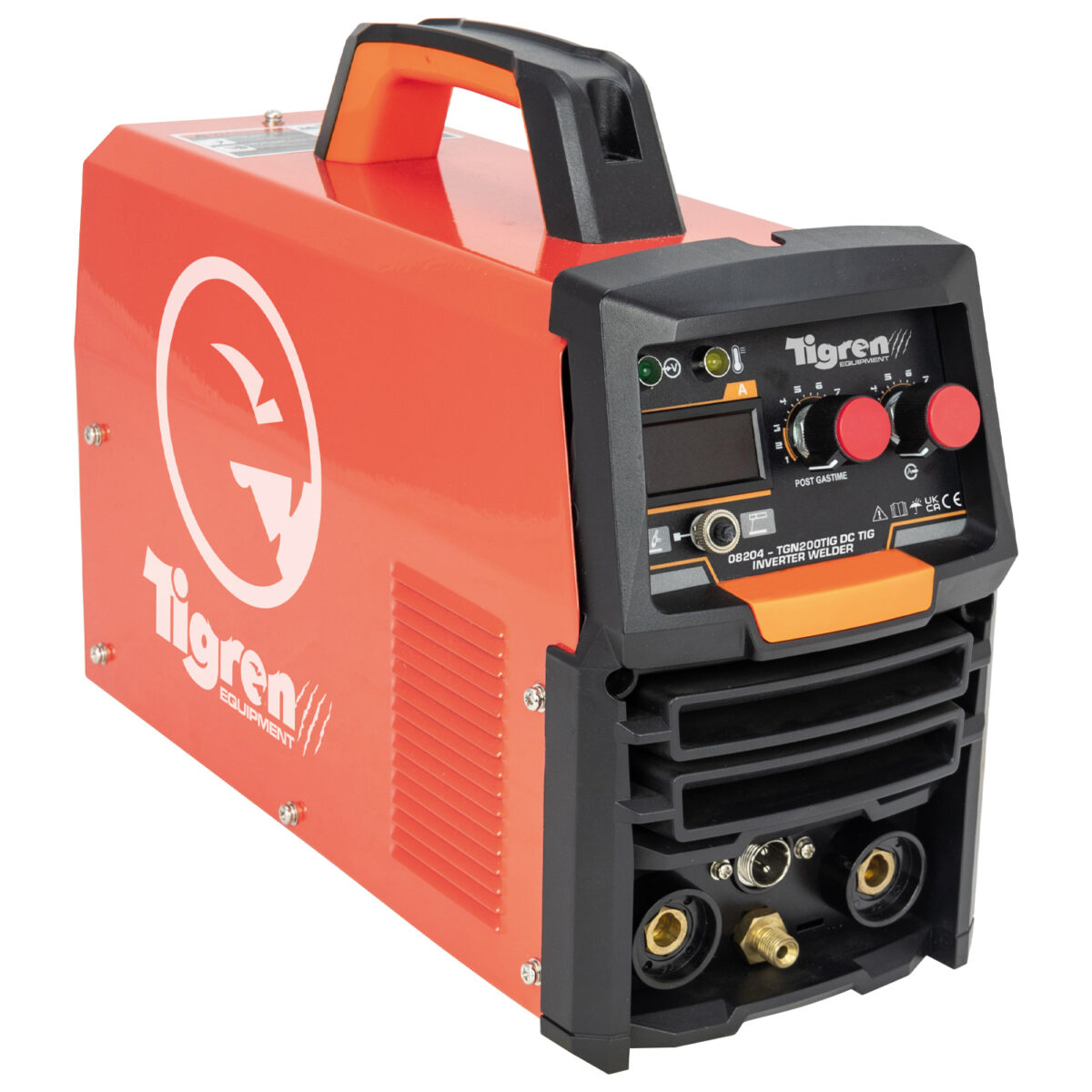

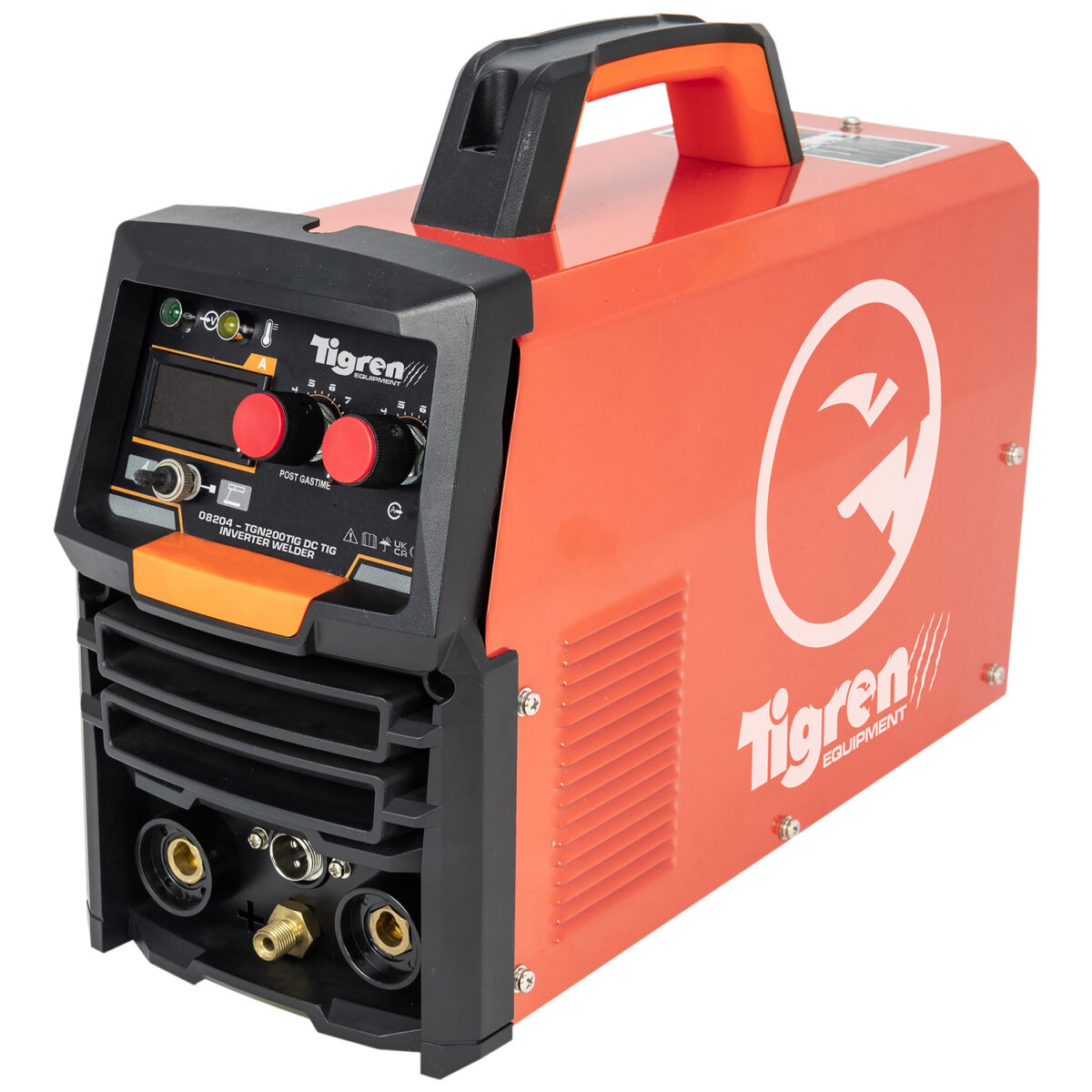

The TIGREN TGN200TIG DC TIG Inverter Welder is a 2-in-1 inverter for powerful HF TIG and MMA/ARC welding, offering low current stability for welding thin material and lightweight and compact design for simple portability. Simply add gas and it is fully ready-to-weld straight out the box.

Ideal for a range of home, trade, and professional applications. Perfect for stainless steel and mild steel projects.

As part of the curated TIGREN range, the TGN200TIG is affordable and reliable, imparting powerful performance via unique and user-friendly features that offer the best, without spending big money.

• 2-in-1 machine offering HF TIG and MMA/ARC processes
• Integrated IGBT inverter technology platform
• Low current output for welding thin materials
• Lightweight and compact design for portability
• Fitted with a post-flow gas timer
• Ideal for a range of home, trade, and professional jobs
• Perfect for stainless steel and mild steel projects

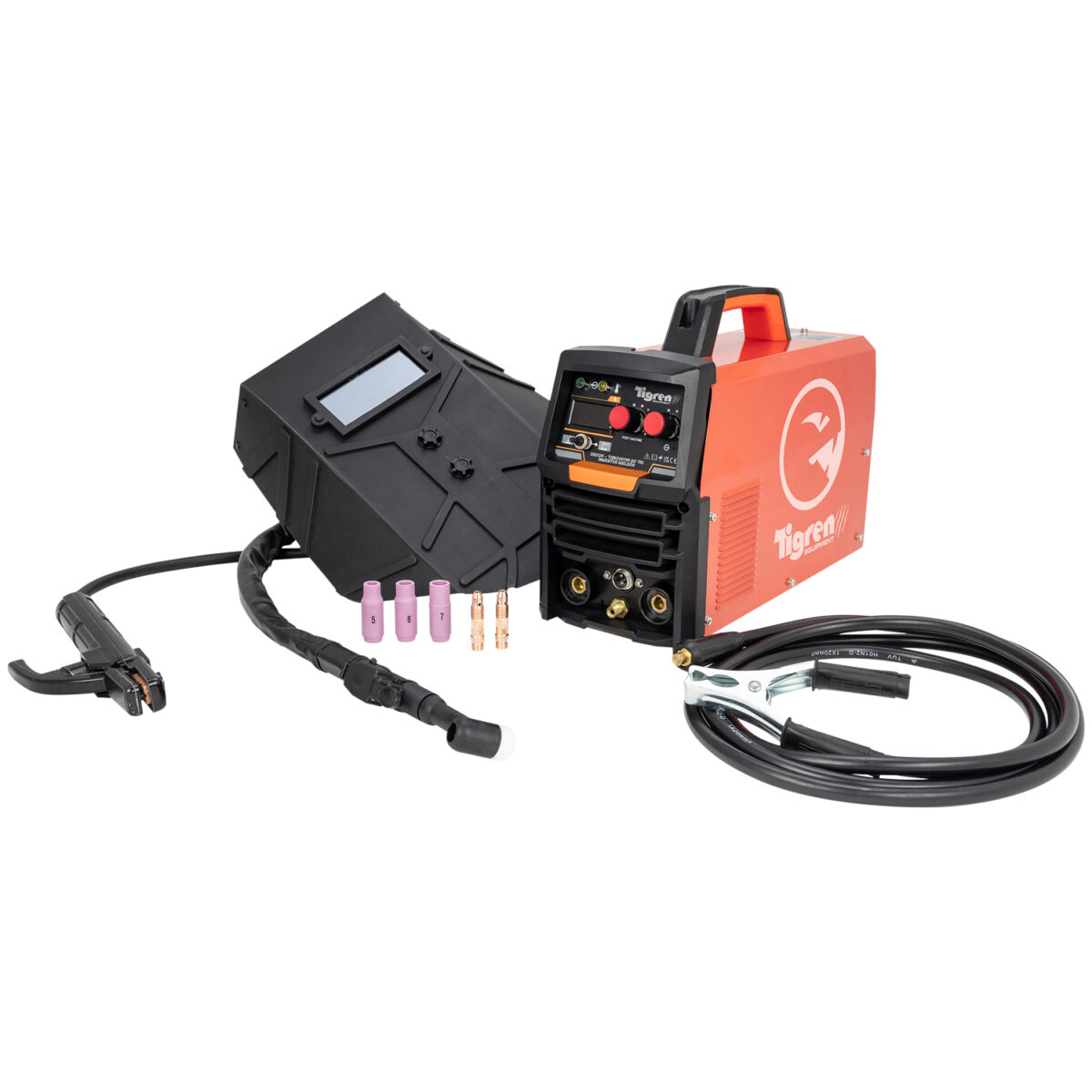

• Supplied with 4mtr WP17V TIG torch, 3mtr 200A Earth lead, 3mtr 200A electrode lead, 2x TIG ceramic shields, 1.6mm and 2.4mm collets, 1.6mm and 2.4mm collet bodies, 1.6mm and 2.4mm Tungsten electrodes, handheld shield, chipping hammer, and wire brush

Technical Specification

• ITEM NO. 08204
• Input Supply: 230v (16A)
• Output Current: 10A – 180A (TIG) / 10A – 160A (MMA)
• Duty Cycle: 180A @ 15% (TIG) 160A @ 15% (MMA)
• Electrode Diameter: Ø 1.6mm – 4mm
• Welding Thickness: 1.5mm – 8mm
